Rugged Mobile HMI

RoughBook®

RoughBook is a fully sealed, CSA certified mobile HMI. An IP65-rated magnesium alloy chassis is ready for dust, water and drops.

Download brochure ↓Certified UKCA, Class 1 Division 2, ATEX, CSA, FCC and cULus

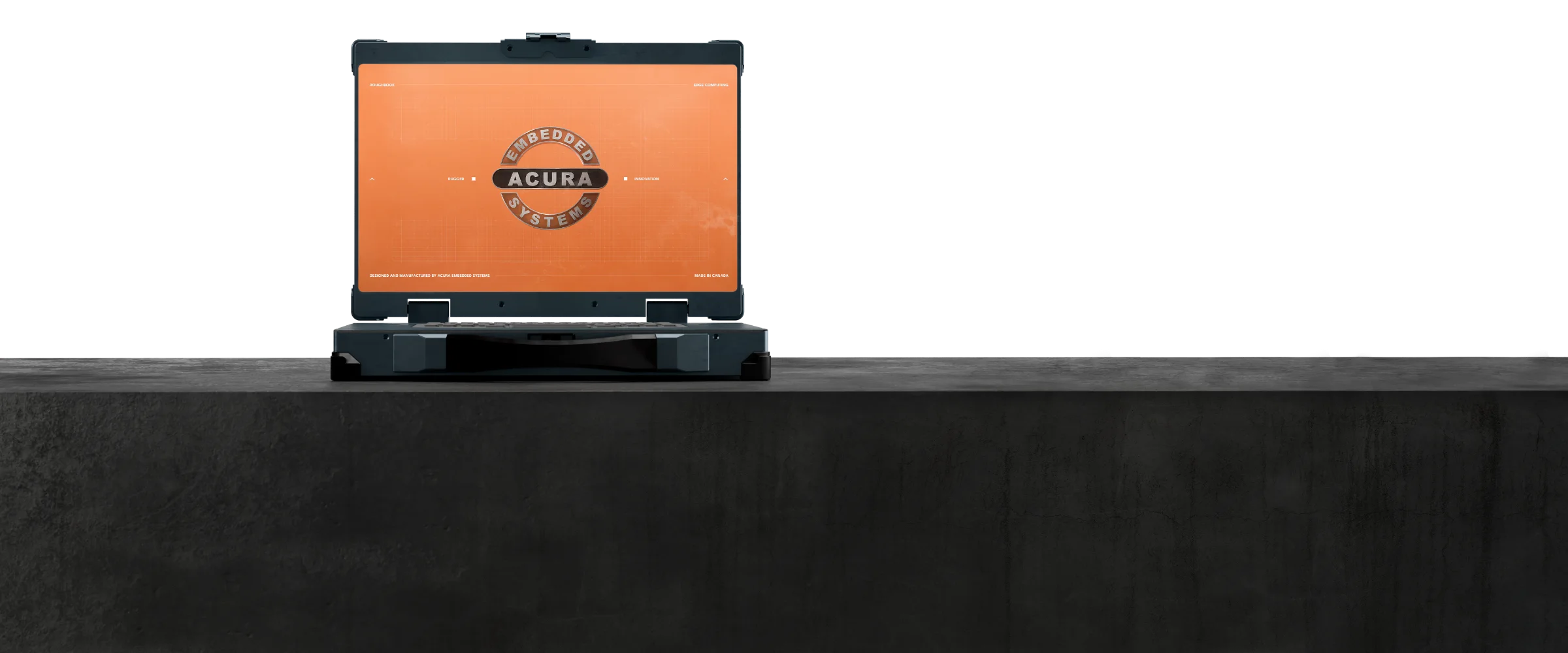

RoughBook rugged laptop open on a concrete ledge, Acura splash screen on the display
1000
Nits of brightness (optional)
IP65
Fully washable
CSA
Certified
3 Year
Warranty
Made in Canada badge
Designed and built in Canada
RoughBook® in the field

Get the size and configuration that works for your site.

Display 15.6″ or 17.3″. Intel i5 or i7. 500 or 1000 nits. AC or 9–36V DC power.

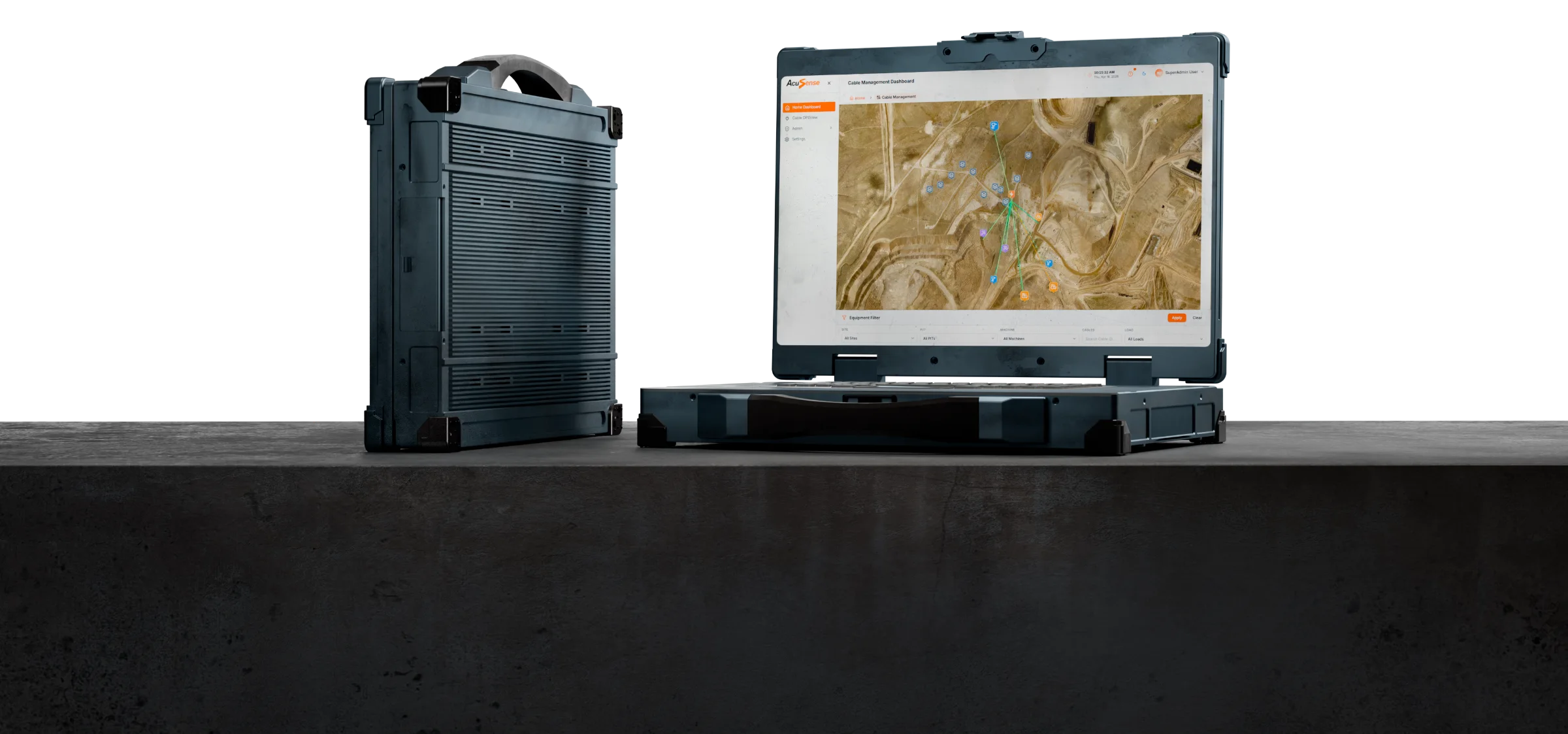

RoughBook open with a site-mapping dashboard, beside a second RoughBook closed and standing on its handle

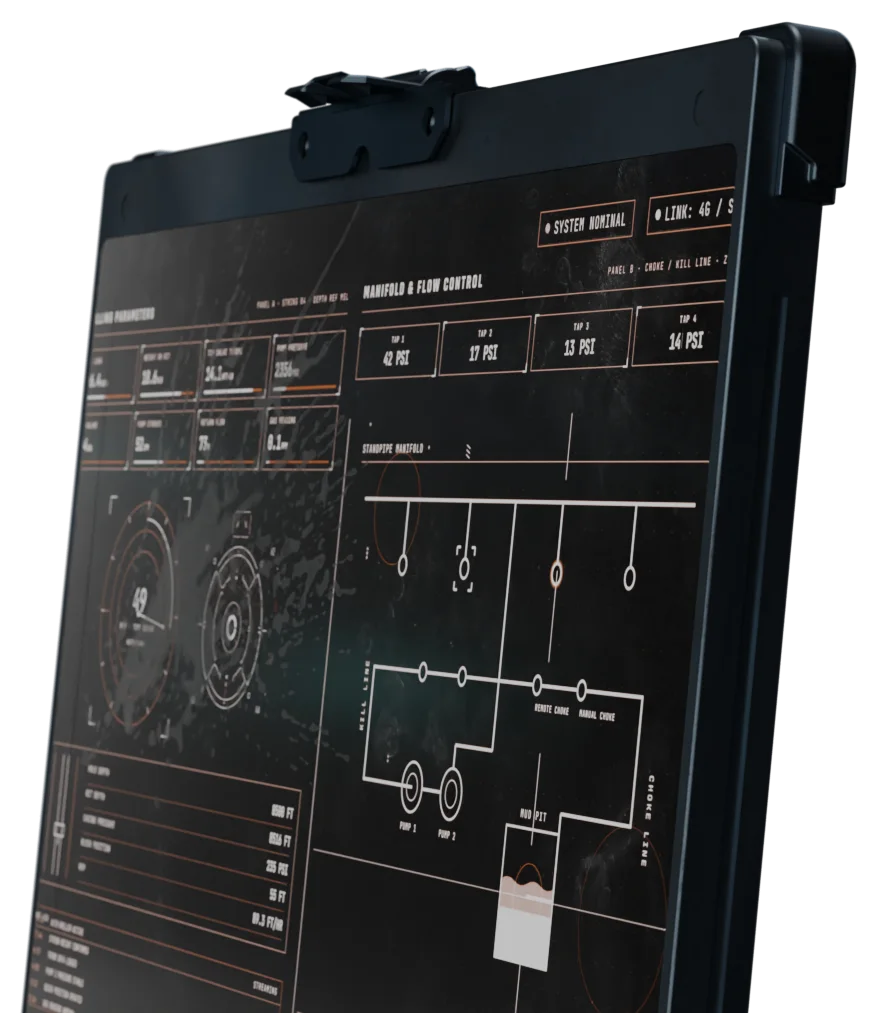

Close-up of the RoughBook display showing an HMI dashboard
Display

Capacitive touchscreen.

A 15.6" or 17.3″ 1920 × 1080 capacitive multi-touch display, sunlight readable at up to 1000 nits.

Up to 1000 nits
500 nits standard, 1000 nits optional.
Glove-on touch
Capacitive multi-touch that works with gloves on.
Sunlight readable
Built for outdoor use in direct sun.
Full HD
1920 × 1080 on the 15.6" or 17.3″ 16:9 panel.
Sealed and certified

Fully sealed. Ready for the field.

Machined magnesium alloy is lighter than steel, stronger than plastic. Ports, hinges and the keyboard deck are gasketed, so dust, rain and washdown spray stay outside.

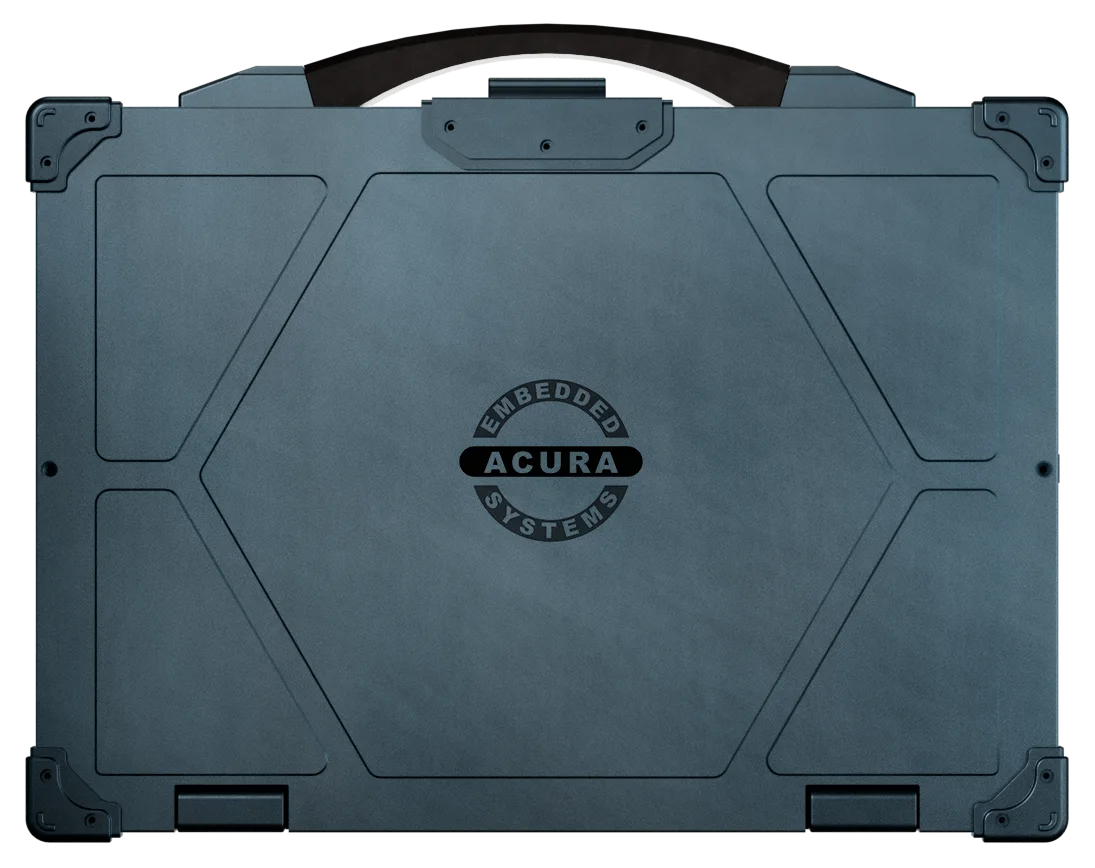

RoughBook lid with the Acura Embedded Systems emblem

IP65, all sides

Fully sealed chassis for dust and water ingress protection.

Drop and vibration

Pre-certified to MIL-STD 810 for drop and vibration resistance.

No fan, no heater

Operates from −40°C to +60°C.

RoughBook®

Tech specs.

Model
Customizable
Display
Brightness
Sizes
Processor
Memory
Storage
I/O (customizable)
Wireless
Power input
Operating system
Operating temperature
Storage temperature
Relative humidity
Ingress protection
Certifications
Mounting
Dimensions
Weight
Construction
Model numbers
Warranty
Specifications are for the RoughBook 17, from the spec table on acuraembedded.com. I/O is customizable.
Seen the specs? Get a price for your configuration.
Get a quote
Downloads

Brochures and spec sheets.

FAQ

Common questions.

What is RoughBook?

RoughBook is a fully sealed, CSA certified rugged laptop that works as a mobile HMI. Its magnesium alloy chassis is sealed to IP65 on all sides against dust, water and washdown spray.

Is RoughBook certified for hazardous locations?

Yes. RoughBook carries Class 1 Division 2 and ATEX certification, and is pre-certified to MIL-STD 810 for drop and vibration resistance.

Can the screen be read in direct sunlight?

Yes. The 1920 × 1080 capacitive display is 500 nits as standard, with 1000 nits optional for direct sun. Multi-touch works with gloves on.

What sizes does RoughBook come in?

15.6″ or 17.3″. The RoughBook 17 measures 428 × 303 × 70 mm and weighs 8.3 kg (18.25 lbs).

What power and temperature range does it need?

RoughBook runs on 110–240V AC or 9–36V DC and operates from −40°C to +60°C, with no fan and no heater.

What processor and software does it run?

Intel Core i5 or i7, with up to 64GB of memory and a 256GB to 4TB SSD. It runs Windows 10 IoT LTSC, Windows 11 IoT LTSC, Windows 11 Pro or Linux.

How does RoughBook connect and mount?

Wi-Fi, 4G / LTE and 900 MHz radio, with customizable I/O on industrial or mil-grade connectors. It mounts by chain, panel, wall or VESA. For a permanently mounted outdoor HMI, see RoughNeck.

RoughBook®

Tell us your specifications, and receive a quote for your custom RoughBook configuration.

Fanless design
Glove-on touchscreen
IP65 fully washable
Intel i5 or i7 CPUs
1000 nit brightness
Wireless connectivity
