High-Bright HazLoc Displays

AcuBrite®

A Class 1 Division 2 and ATEX certified high-bright display, sunlight-readable to 1000 nits, with front or full sealing.

Download spec sheet ↓Certified UKCA, Class 1 Division 2, ATEX, CSA, FCC and cULus

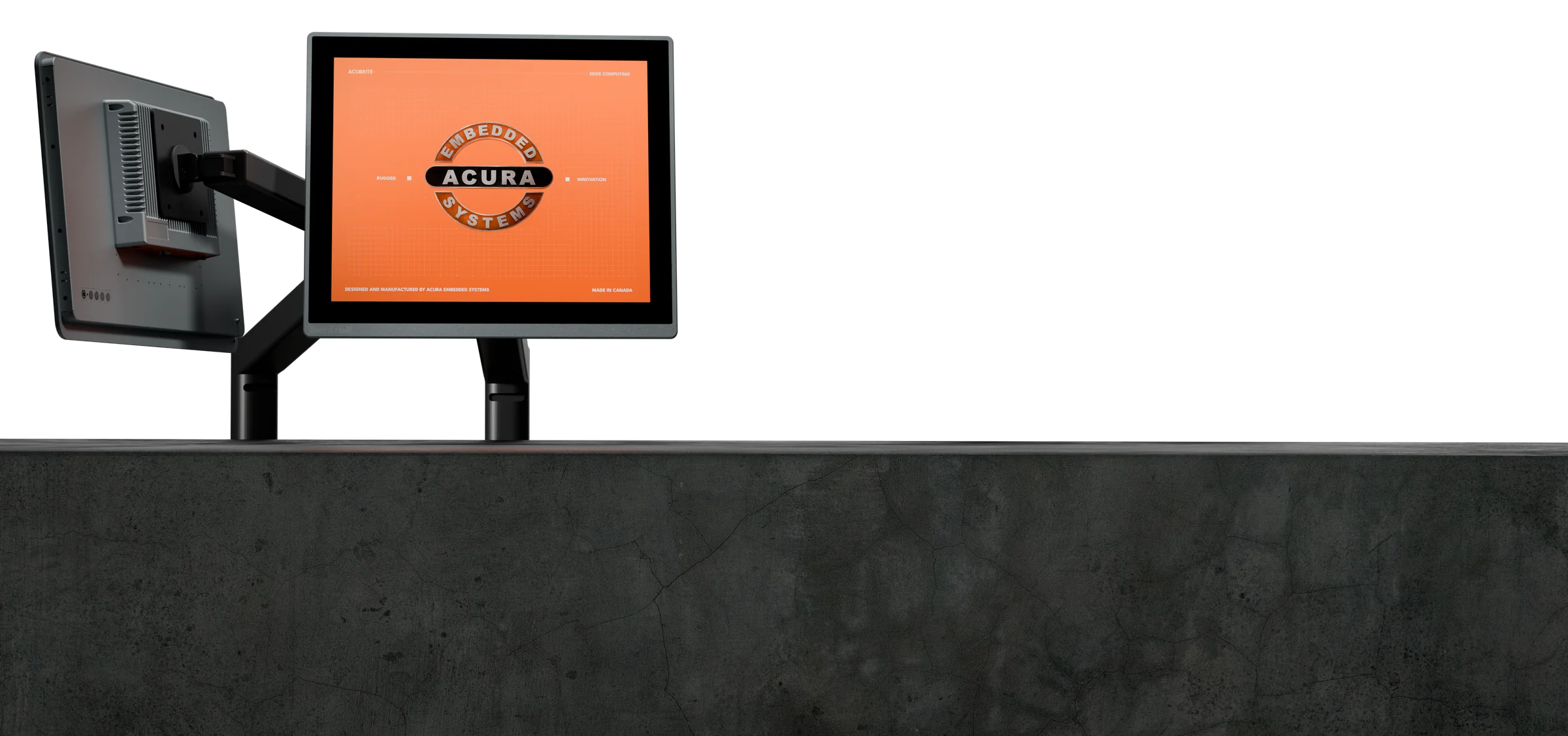

Two AcuBrite displays on articulating mounts on a concrete ledge
1000
Nits of brightness
IP65
Front / fully washable
−40 to 60°C
Operating range
3 Year
Warranty
Made in Canada badge
Designed and built in Canada

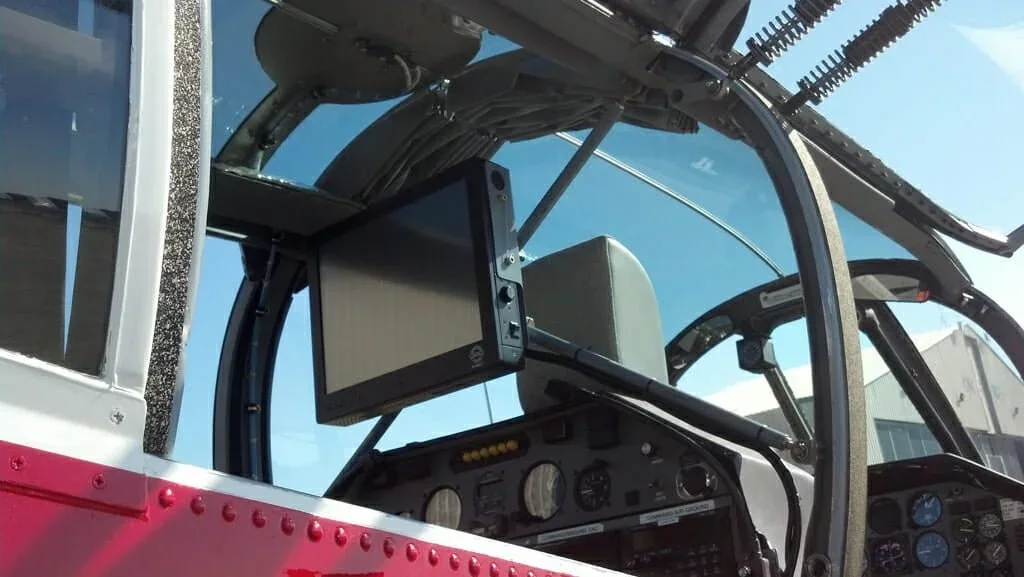

AcuBrite® in the field

Get the size that works for your site.

Displays from 12″ to 22″. Sealing front-face IP65. Panel or VESA mounting.

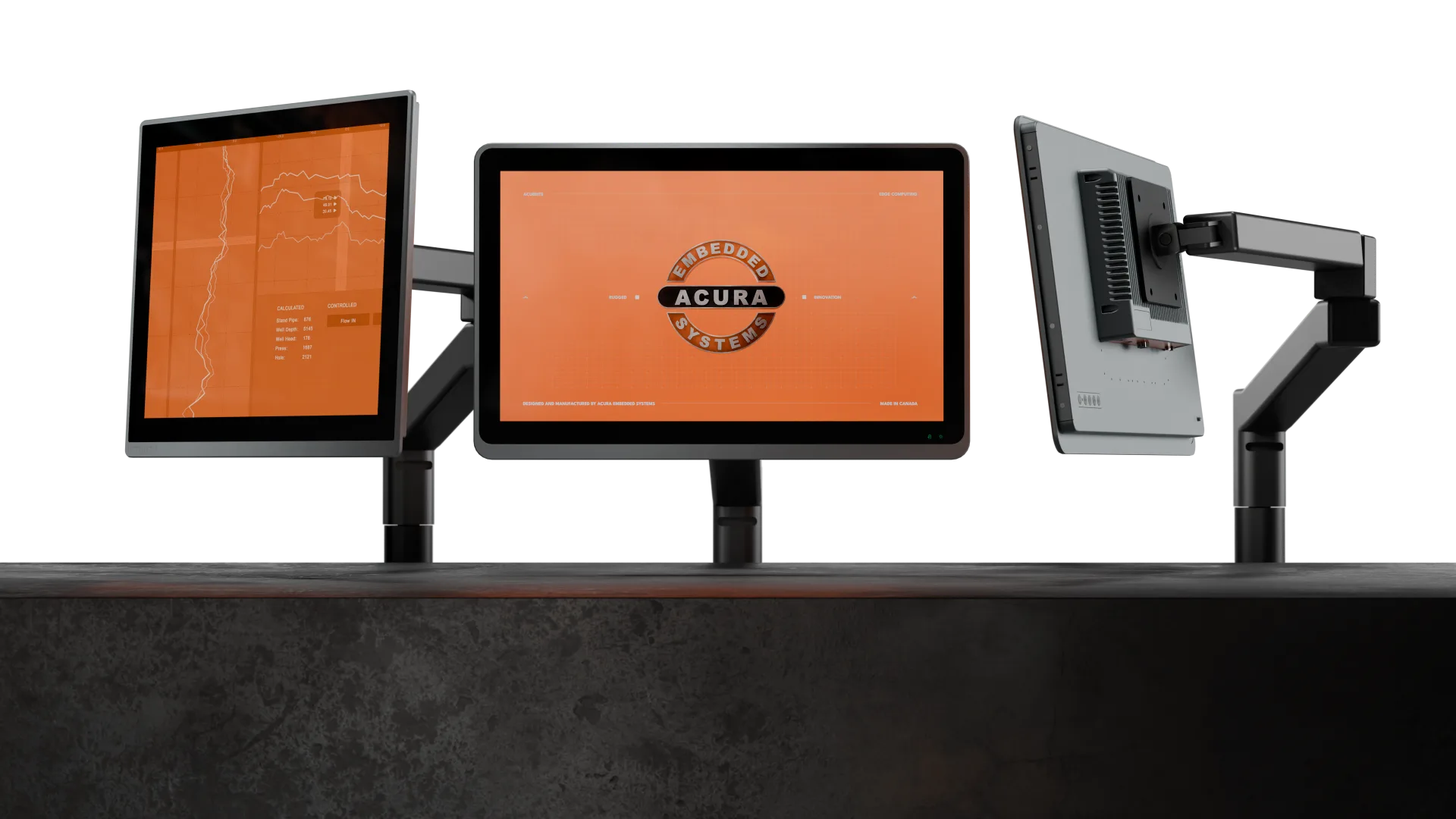

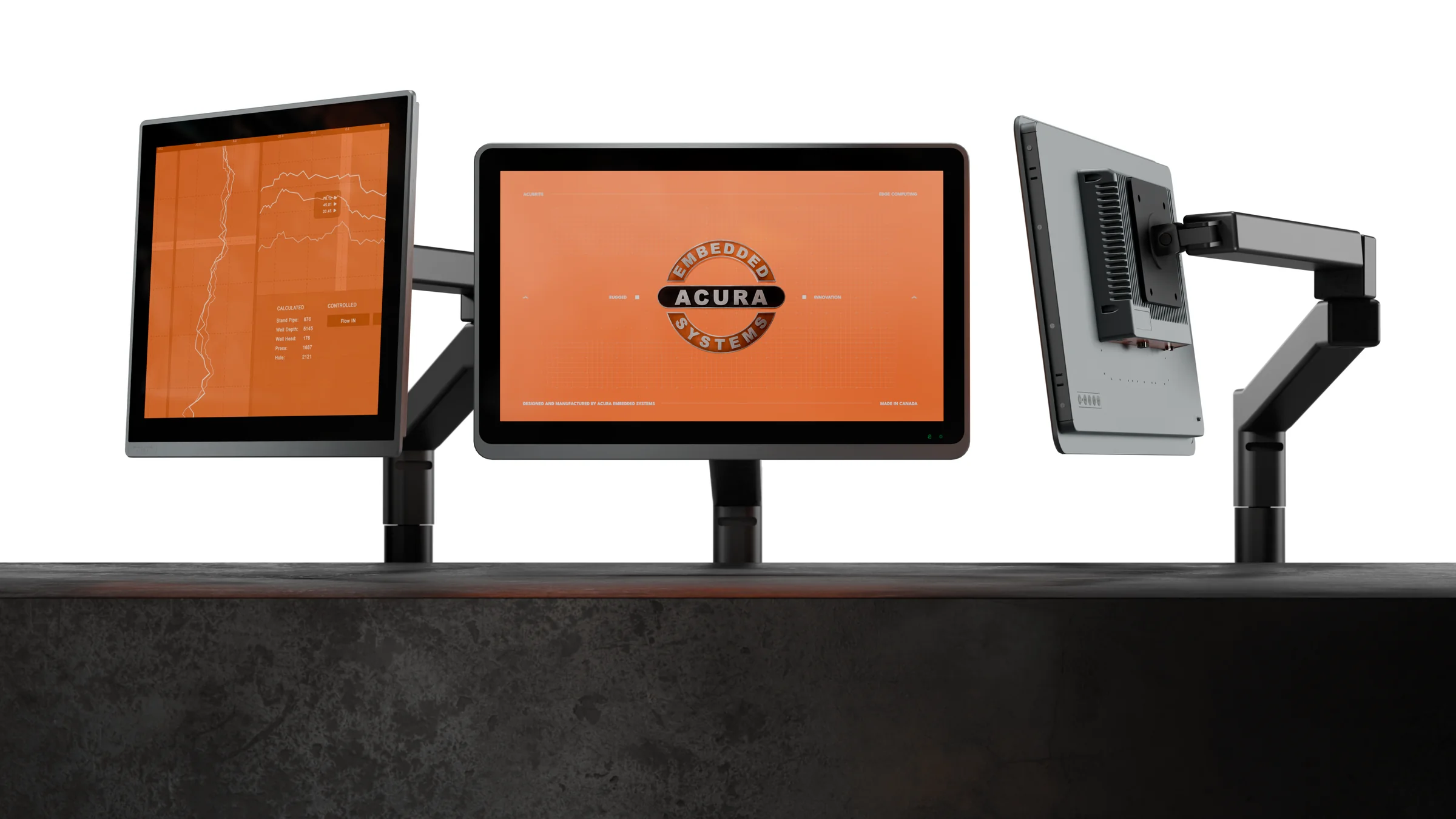

Three AcuBrite displays in different sizes on articulating mounts
AcuGlass display layers: scratch-resistant glass, anti-glare coating and touch panel

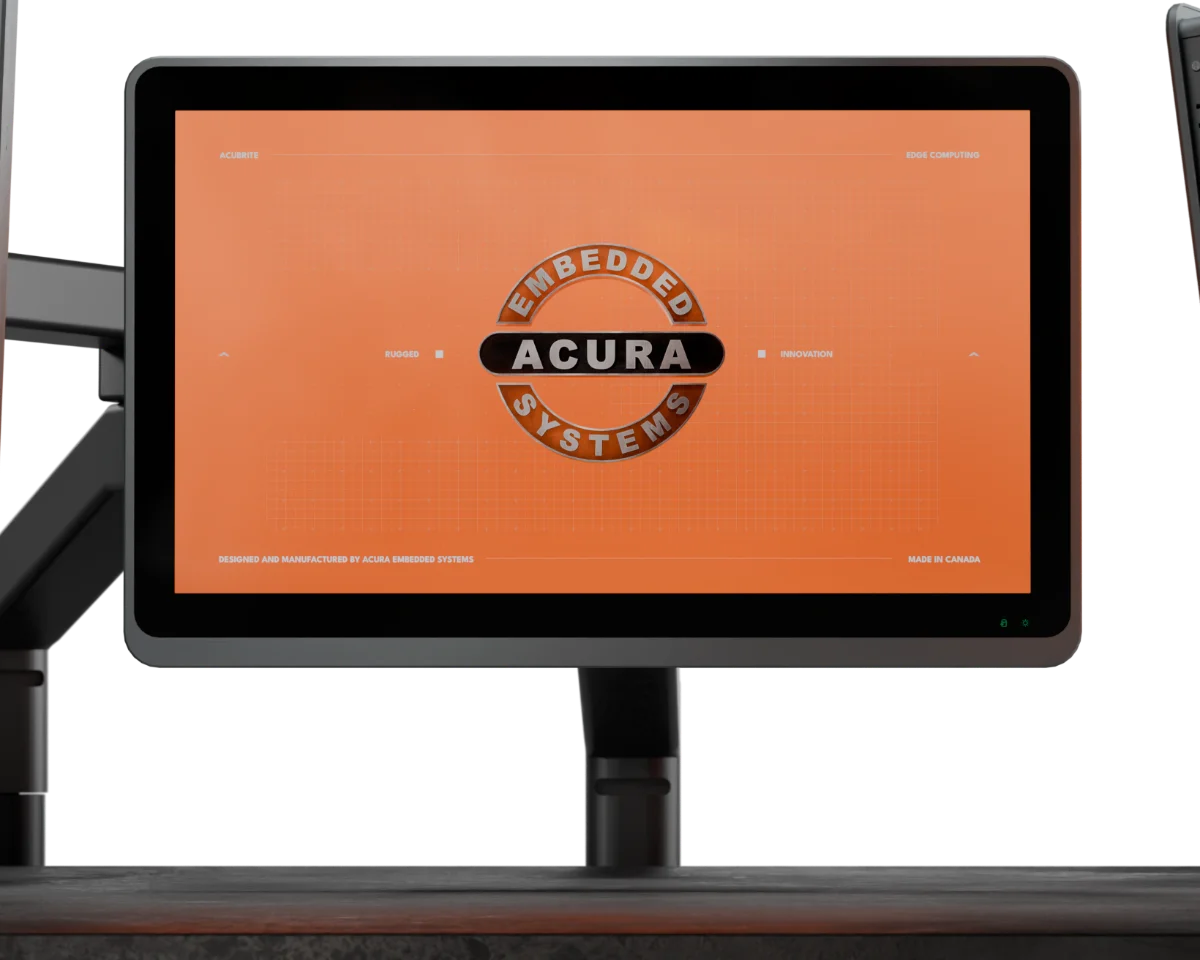

Display

AcuGlass® Display.

Scratch-resistant glass, a ceramic anti-glare coating for sunny days, and up to 1000 nits of brightness. Ten-point capacitive touch stays responsive through heavy gloves.

1000 nit backlit display
Optimal high brightness, readable in direct sunlight.
Capacitive touchscreen
Multi-touch that works through gloves.
Anti-glare coating
Ceramic coating cuts reflection on sunny days.
Chemically strengthened glass
Scratch-resistant cover glass.
Compact and user friendly

Built to integrate.

A slim, lightweight build engineered for effortless handling, seamless integration, and quick, hassle-free installation.

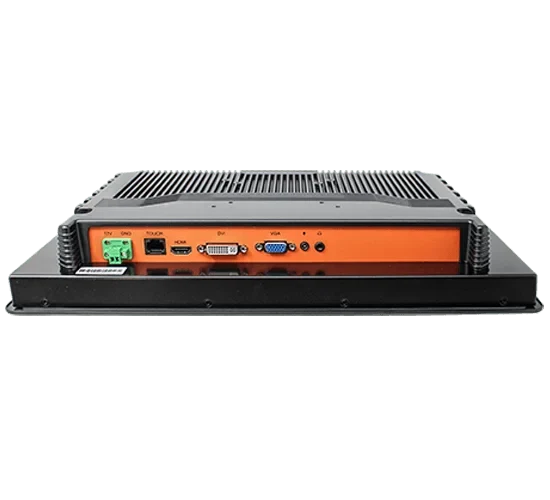

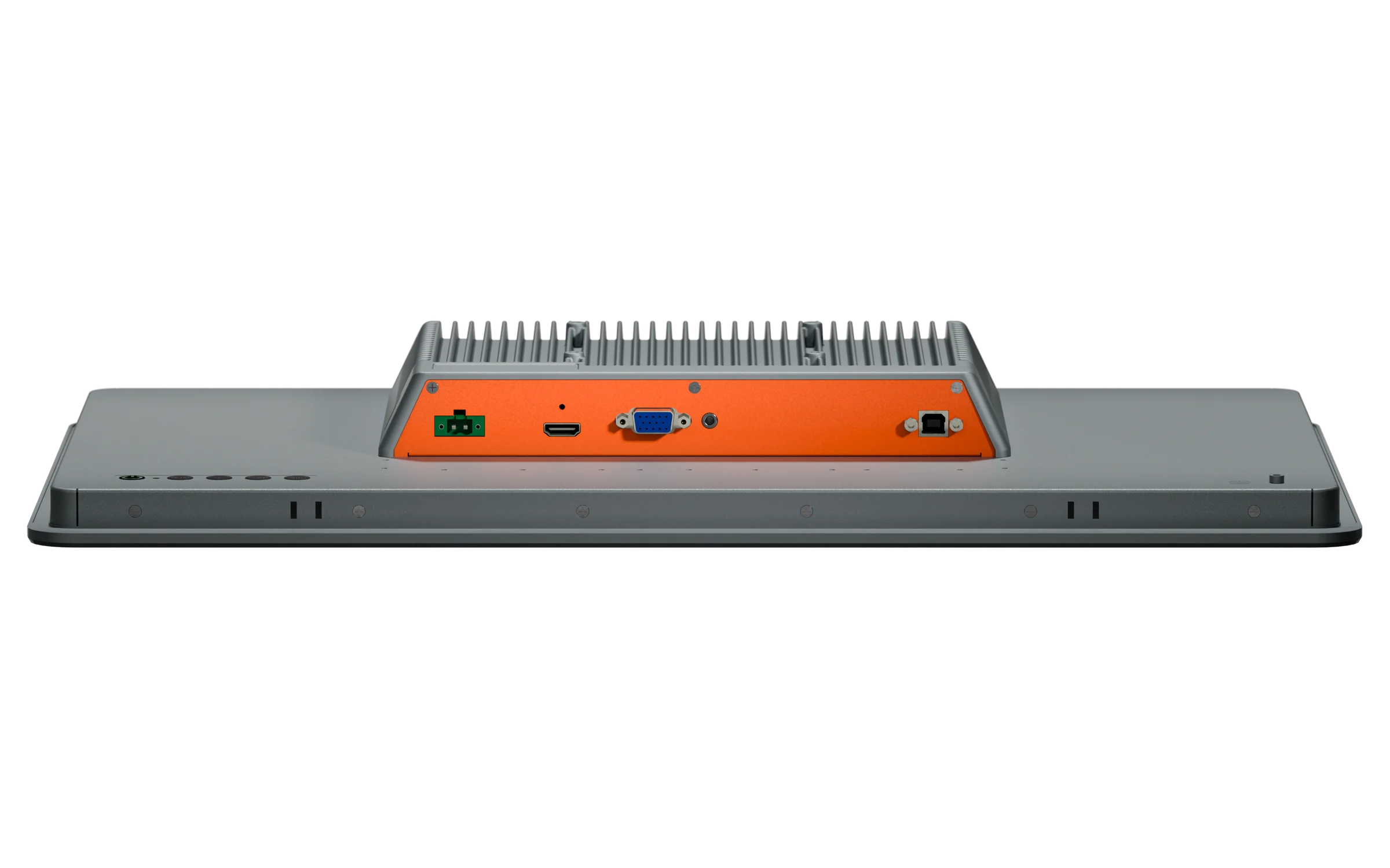

AcuBrite bottom view showing HDMI, VGA and USB ports

Versatile mounting

Panel and VESA mounts, engineered for stable, long-lasting performance in hazardous locations.

Front  washable

IP65 front panel, dust and splash resistant.

Audio and controls

Built-in speakers and microphone, plus a manual brightness switch.

AcuBrite®

Tech specs.

Model
Customizable
Screen sizes
Brightness
Contrast · colour
Viewing angle
Response time
Touchscreen
I/O
Power
Audio
Operating temperature
Relative humidity
Ingress protection
Certifications
Mounting
Construction · cooling
Warranty
Specifications from the AcuBrite spec sheet on acuraembedded.com.
Seen the specs? Get a price for your configuration.
Get a quote
Downloads

Brochures and spec sheets.

FAQ

Common questions.

What is AcuBrite?

AcuBrite is a sunlight-readable display for hazardous locations. It is a monitor, with no computer inside, and adds a certified high-bright touchscreen to a PC you already have.

Is AcuBrite certified for hazardous locations?

Yes. AcuBrite is certified for Class 1 Division 2 and ATEX.

How bright is the display?

1000 nits, with a 1000:1 contrast ratio, behind scratch-resistant AcuGlass® with a ceramic anti-glare coating.

What screen sizes does AcuBrite come in?

From 12″ to 22″, in 16:10, 4:3 and widescreen formats.

How does AcuBrite connect to a computer?

HDMI or VGA for video, and USB for the touchscreen. The ten-point capacitive touch stays responsive through heavy gloves.

What power and temperature range does it need?

AcuBrite runs on 9–36V DC, or on a 100–240V AC adapter, and draws 20W. It operates from −40°C to +60°C, fanless and with no heater.

How is AcuBrite sealed and mounted?

The front panel is sealed to IP65, and it mounts in a panel or on a VESA arm. If you need the computer built in, see AcuPanel.

AcuBrite®

Tell us your specifications, and receive a quote for your custom AcuBrite configuration.

1000 nit brightness
Glove-on touchscreen
Front or fully washable
−40°C to +60°C
Fanless design
Ceramic anti-glare
Download spec sheet ↓

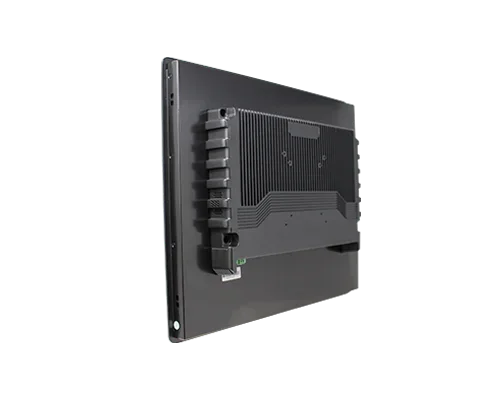

AcuBrite 15-inch widescreen display, rear three-quarter view
