Flagship fanless computer

PowerBrick® X

Our most powerful fanless computer, built two ways: X for panels and vehicles, and XS sealed to IP65 for full washdown. Intel Core Ultra inside, configured around your project.

Download spec sheet ↓Certified UKCA, Class 1 Division 2, ATEX, CSA, FCC and cULus

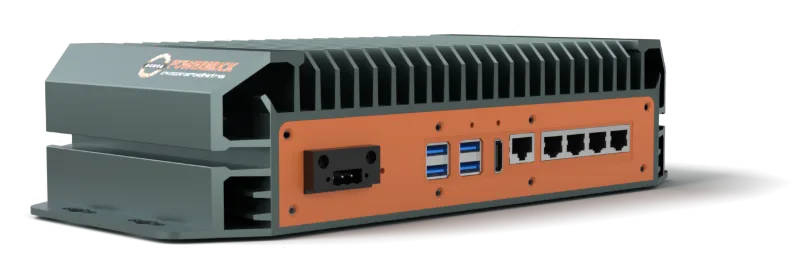

PowerBrick X with its orange I/O plate, three-quarter view
Ultra 7
Intel Core Ultra option
64GB
DDR5 memory
IP65
Sealed XS build
3 Year
Warranty
Made in Canada badge
Designed and built in Canada
The PowerBrick® X family

One platform, configured for the job.

The X for panels and vehicles, the XS sealed for washdown. Add antennas, PoE or a custom I/O plate, and mount it flat or on end.

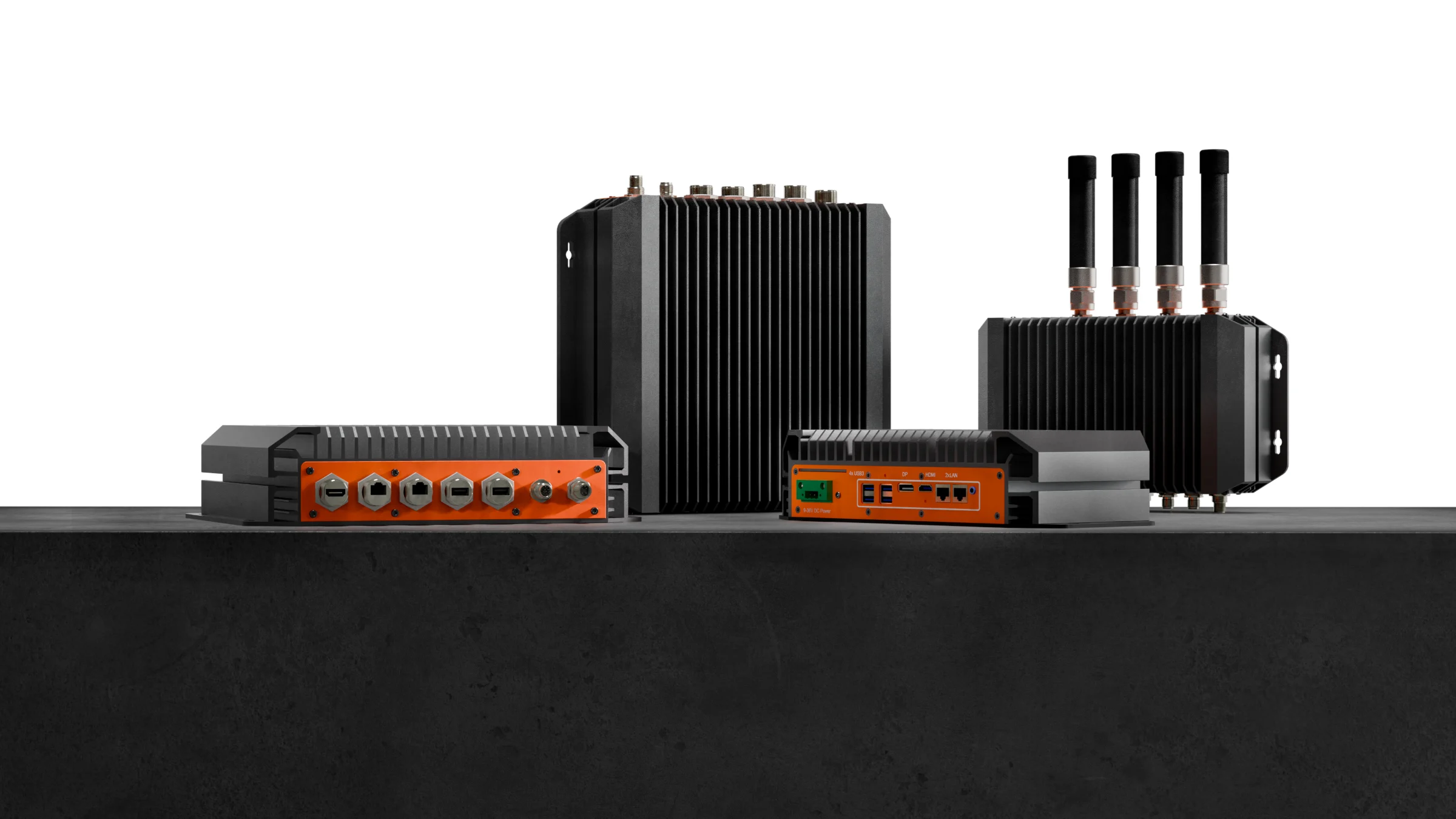

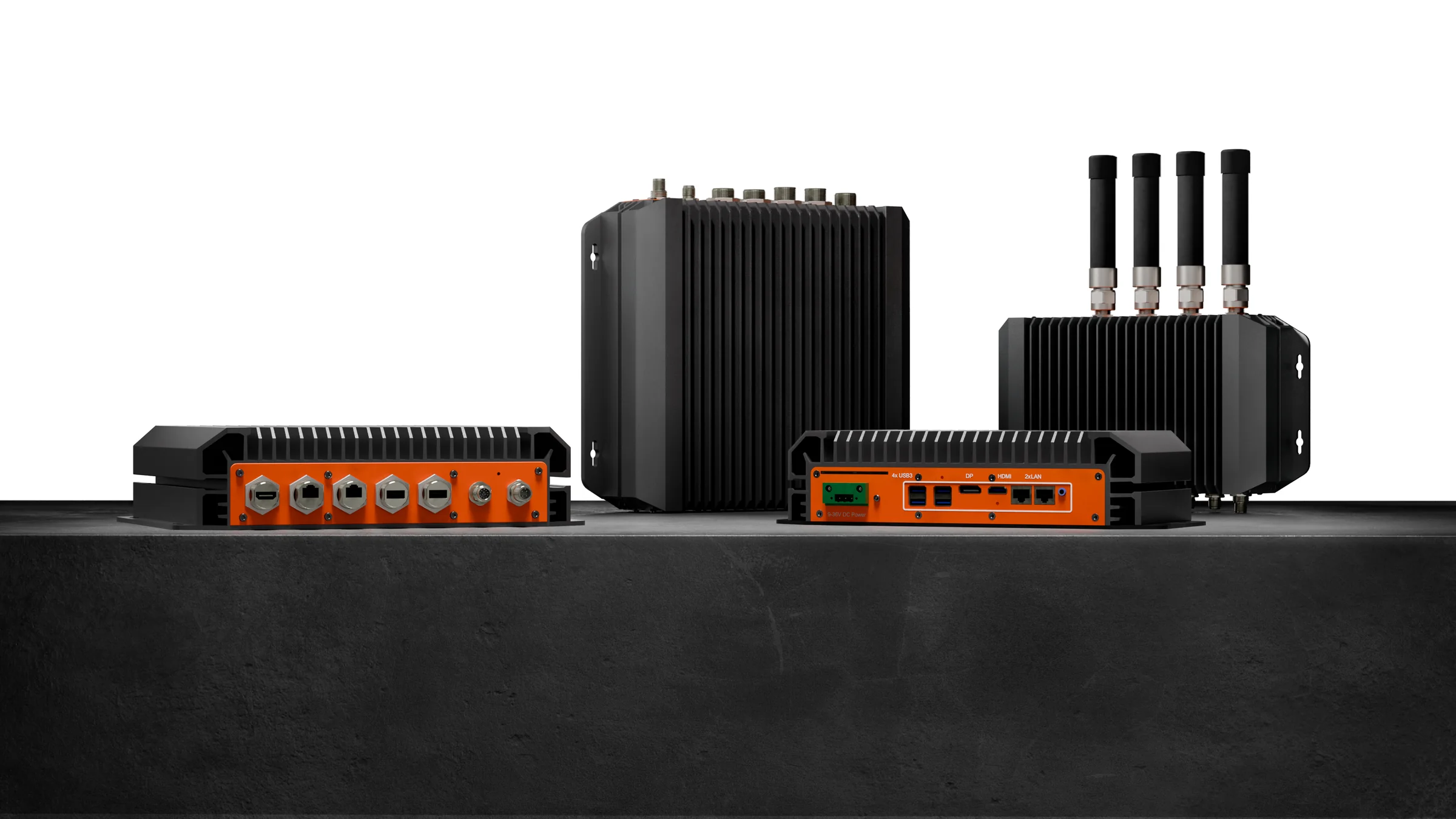

PowerBrick X and XS family on a concrete ledge, including sealed, antenna and upright builds
Two builds, one platform

X or XS. Same core, different armour.

Both run Intel Core Ultra with up to 64GB of DDR5 and two 4TB SSDs. Choose the X for panels and vehicles, or the XS when the unit lives outside and gets hosed down.

PowerBrick X front I/O plate with GPIO, serial, display and power connectors

PowerBrick X

For panels and vehicles
1× HDMI, 1× VGA · 4× USB 3.2
1× GbE plus up to 4× PoE for cameras
Vehicle ignition start and GPIO optional
Model PBXG1 · HazLoc model PBXG1-Z2

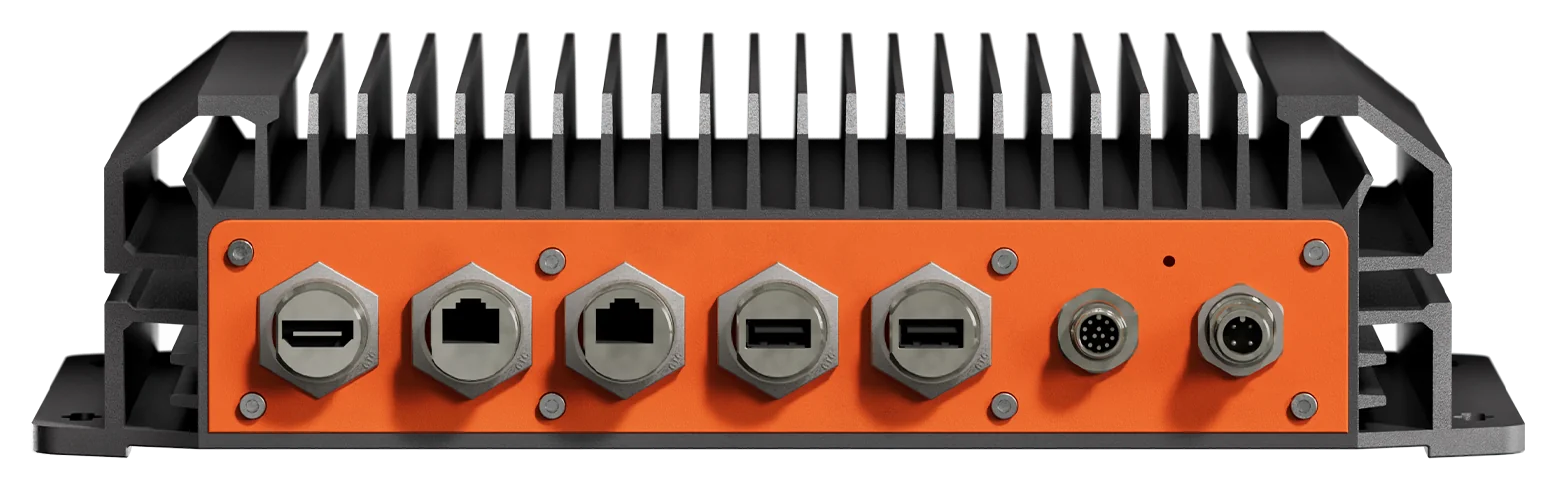

PowerBrick XS front with sealed circular connectors

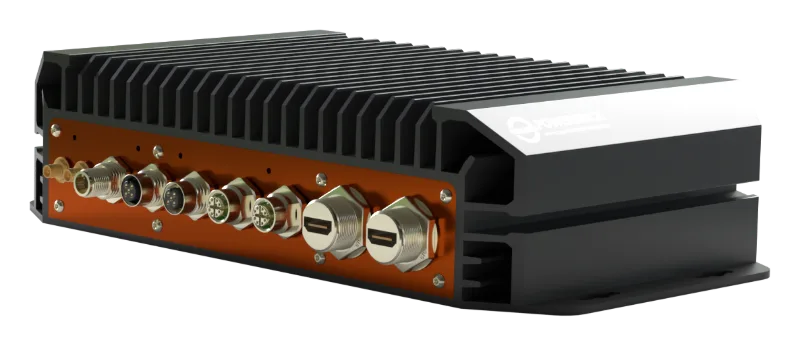

PowerBrick XS

Sealed for washdown
IP65 all sides · NEMA 4X washable
2× HDMI · 3× USB 3.2 · 2× GbE
Sealed connectors on the I/O plate
Model PBXSG1 · HazLoc model PBXSG1-Z2

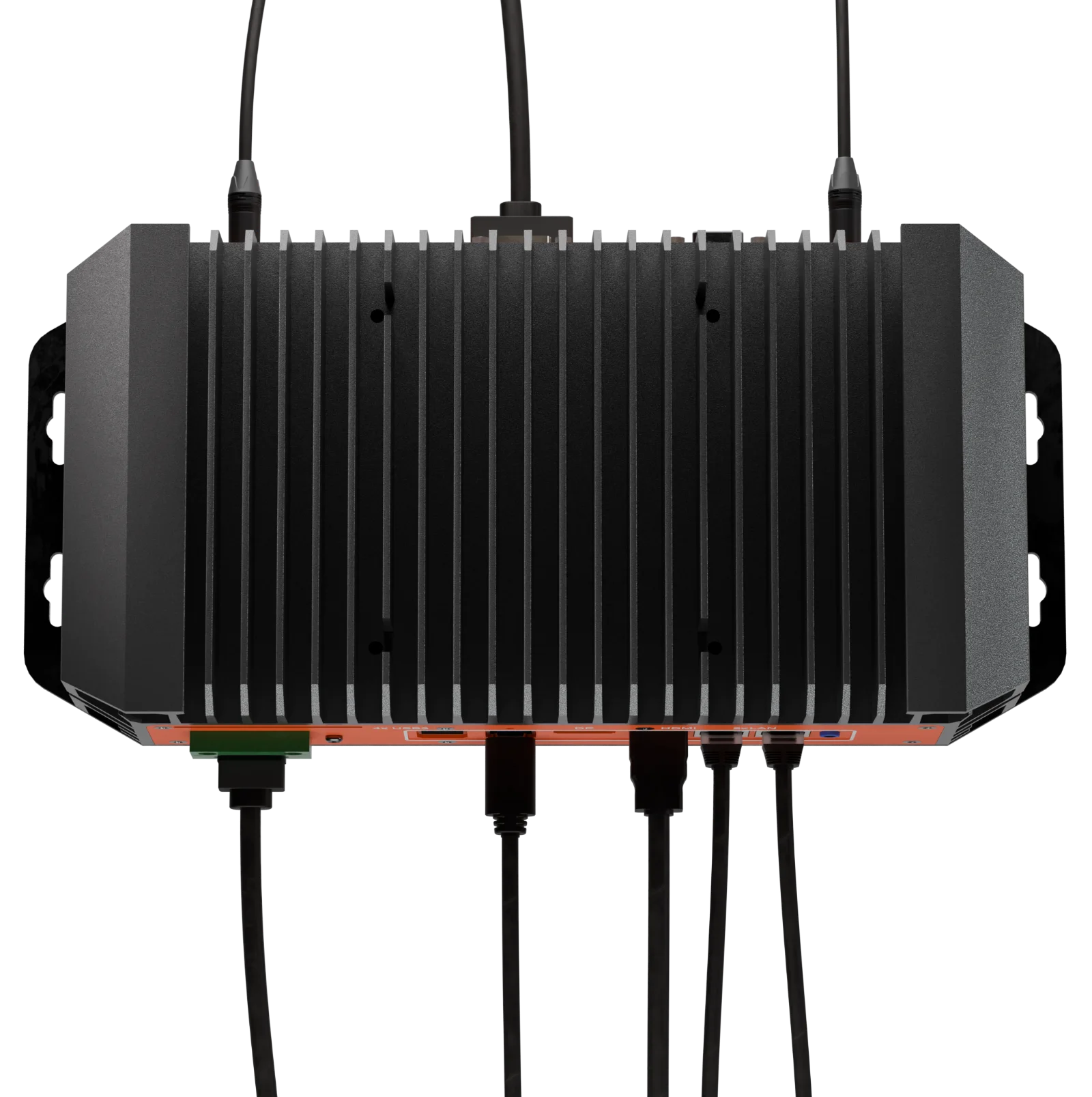

PowerBrick X from above with power, USB and LAN cables connected
Configured to order

Build it your way.

Like RoughNeck®, every PowerBrick X is built to order. Tell us what the job needs and we configure, integrate and certify it as one unit.

Processor
Intel Core Ultra 5 125H, or Ultra 7 165H for heavier workloads, with Intel Arc graphics.
Memory and storage
Up to 64GB DDR5. Up to 4TB NVMe plus an optional second 4TB SATA SSD, in RAID 0 or 1.
Power
9–36V DC with optional vehicle ignition start, or a 110–240V AC option.
Connectivity
Wi-Fi 6E and Bluetooth, with 4G / 5G / LTE / GPS optional. Up to 4× PoE on the X.
Certification
A standard build, or the HazLoc model certified ATEX, Class 1 Division 2 and Class 1 Zone 2.
Operating system
Windows 10 IoT, 11 IoT, 11 Pro or Linux.

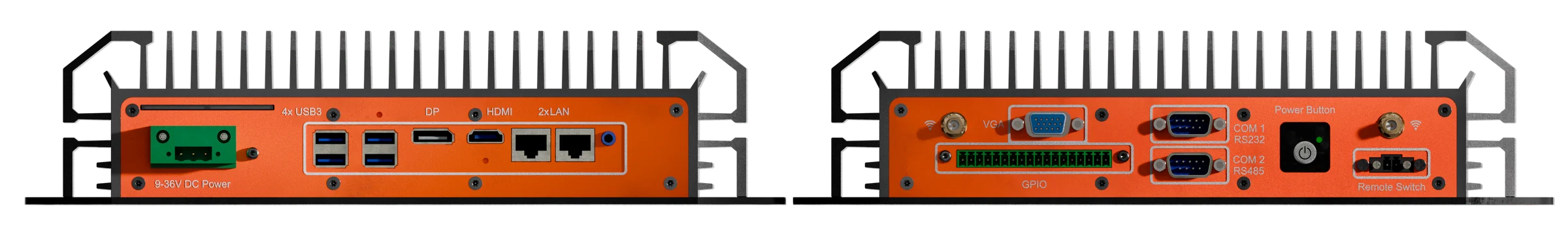

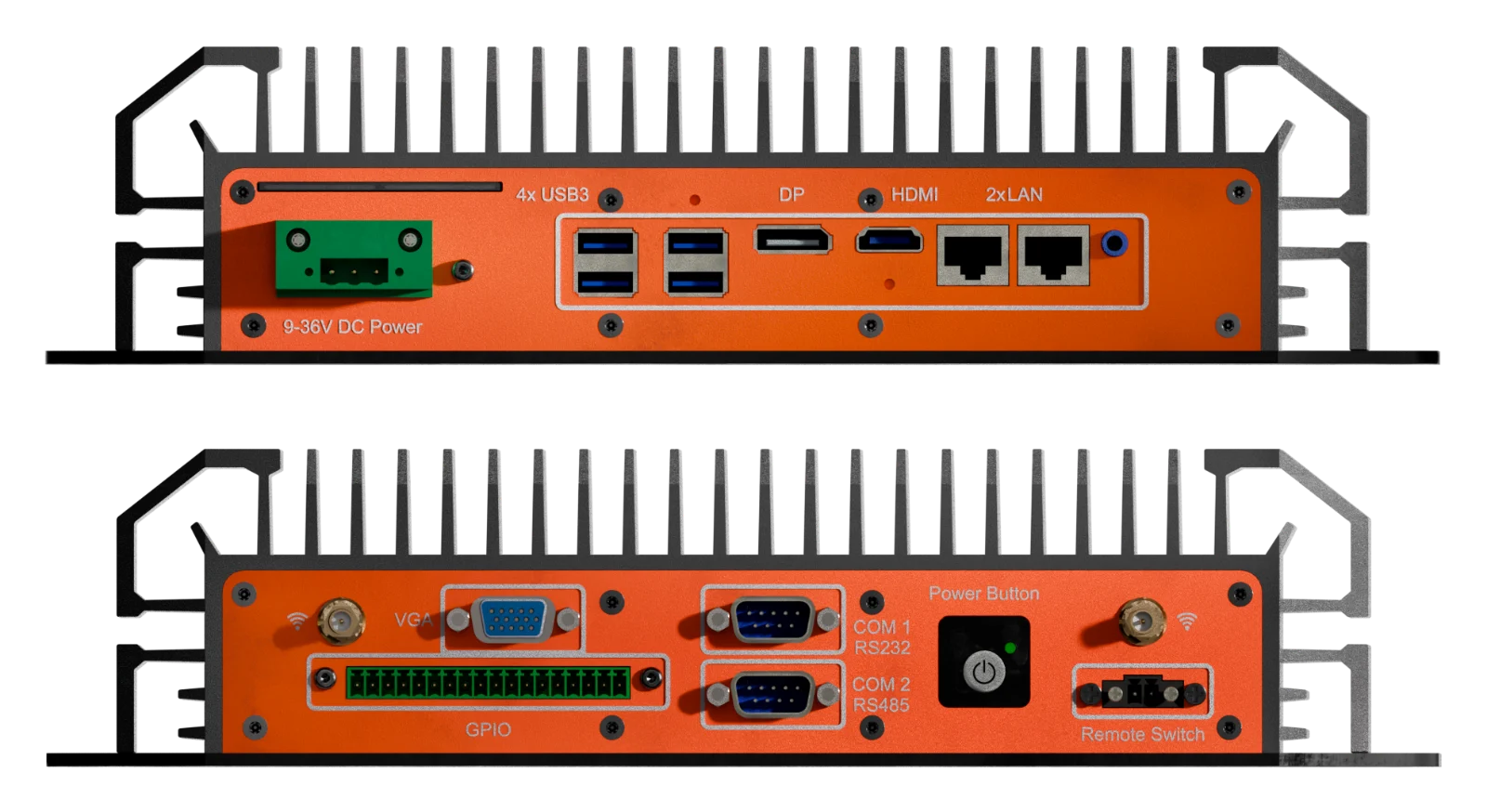

PowerBrick X front and rear I/O plates with DC power, USB 3, DisplayPort, HDMI, LAN, VGA, GPIO, serial and antenna connectors
Custom I/O

Customizable connectors.

Send us your connector list and we machine the I/O plate to match, then certify the unit as a whole. The ports you need, and nothing you don’t.

Your connector list
Serial, LAN, PoE, USB, video, antenna and power, in the mix and positions your installation needs.
Custom ports and pass-throughs
Custom-configured ports and pass-throughs for your sensors and devices, certified as a single unit.
Sealed on the XS
IP65 sealed connectors on the XS I/O plate keep washdown water and dust out.
Power the way you wire it
9–36V DC with optional ignition start, or 110–240V AC, on the connector you specify.

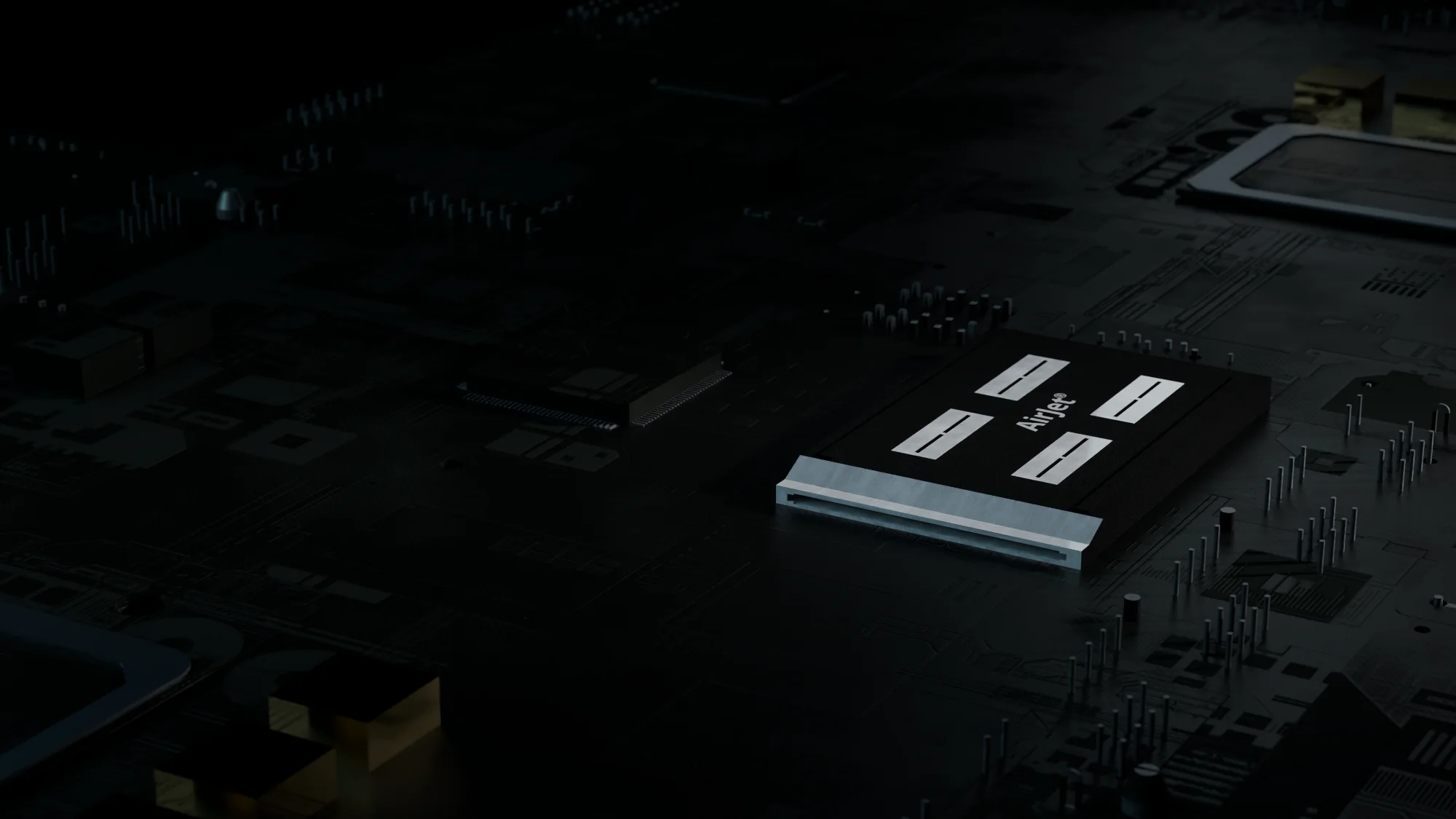

Optional solid-state cooling

AirJet®. Cooling with no moving parts.

An option on PowerBrick X. Unlike fans, AirJet has no moving parts: ultrasonic MEMS membranes inside the chip pull in air and push out high-velocity pulsing jets that carry the heat away. Our proprietary IP68-rated plenum system brings cool air in and exhausts hot air out while keeping dust and water out, so the Core Ultra processor holds its speed in a sealed chassis.

No moving parts

Nothing spins, so there are no bearings to wear out and no filters to clog on a dusty site.

Sustained performance

Active cooling keeps heavier workloads running at full speed in extreme heat, where passive cooling alone would throttle.

IP68-rated plenum

Our proprietary plenum system brings cool air in and exhausts hot air out of the system, while staying dust and water resistant. No fans and no liquid.

Built for the field

No fans. No excuses.

Vehicle ready

A wide 9–36V DC input and optional ignition start mean it powers on with your fleet. Vibration resistant.

−40°C to +60°C

Runs from desert heat to a Canadian winter night without derating.

Fanless, 24/7

An aluminum alloy chassis with no fans to wear out or clog, with optional AirJet® solid-state cooling for sustained loads.

Power over Ethernet

Up to four PoE ports on the X power dash cameras and other devices straight from the unit.

PowerBrick X and XS

Tech specs.

Model
Customizable
Processor
Graphics
Memory
Storage
Video
LAN
USB
Serial
Wireless
Audio
Power input
Operating system
Operating temperature
Storage temperature
Relative humidity
Ingress protection
HazLoc certifications
Certifications
Mounting
Dimensions
Weight
Construction
Cooling
Custom I/O
Model numbers
Warranty
Specifications are for standard builds. We can change the processor, memory, storage, I/O and certification to suit your project.
Seen the specs? Get a price for your configuration.
Get a quote
FAQ

Common questions.

What is PowerBrick X?

PowerBrick X is Acura’s most powerful fanless computer, built to order for hazardous locations. It comes in two builds: the X for panels and vehicles, and the XS, sealed to IP65 on all sides for washdown.

What is the difference between PowerBrick X and XS?

The X has 1× HDMI, 1× VGA, 4× USB 3.2 and 1× GbE with up to 4× PoE for cameras, in a standard enclosure. The XS has 2× HDMI, 3× USB 3.2 and 2× GbE on sealed connectors, and is IP65 on all sides and NEMA 4X washable.

Is PowerBrick X certified for hazardous locations?

Yes. The HazLoc models, PBXG1-Z2 and PBXSG1-Z2, are certified ATEX, Class 1 Division 2 and Class 1 Zone 2. A standard build without HazLoc certification is also available.

Which processor, memory and storage does it take?

Intel Core Ultra 5 125H, or Ultra 7 165H for heavier workloads, with Intel Arc graphics. Memory goes up to 64GB DDR5. Storage is up to 4TB M.2 NVMe, with an optional second 4TB SATA SSD in RAID 0 or 1.

What power and temperature range does it need?

PowerBrick X runs on 9–36V DC with optional vehicle ignition start, or a 110–240V AC option. It operates from −40°C to +60°C.

What is AirJet® cooling?

AirJet® is optional solid-state active cooling with no moving parts. Together with Acura’s IP68-rated plenum it keeps the Core Ultra processor at full speed in a sealed chassis, with no bearings to wear out and no filters to clog.

Can the connectors be customized?

Yes. Send your connector list and the I/O plate is machined to match, then the unit is certified as a whole. For a compact, fixed configuration, see PowerBrick DV and GTG2.

PowerBrick® X

Tell us your specifications and we will quote your PowerBrick X or XS build.

Intel Core Ultra 5 or 7
Up to 64GB DDR5
Up to 4× PoE
IP65 XS build
9–36V DC
Fanless
AirJet® cooling option
Custom I/O
Looking for a smaller build? See PowerBrick DV and GTG2 →

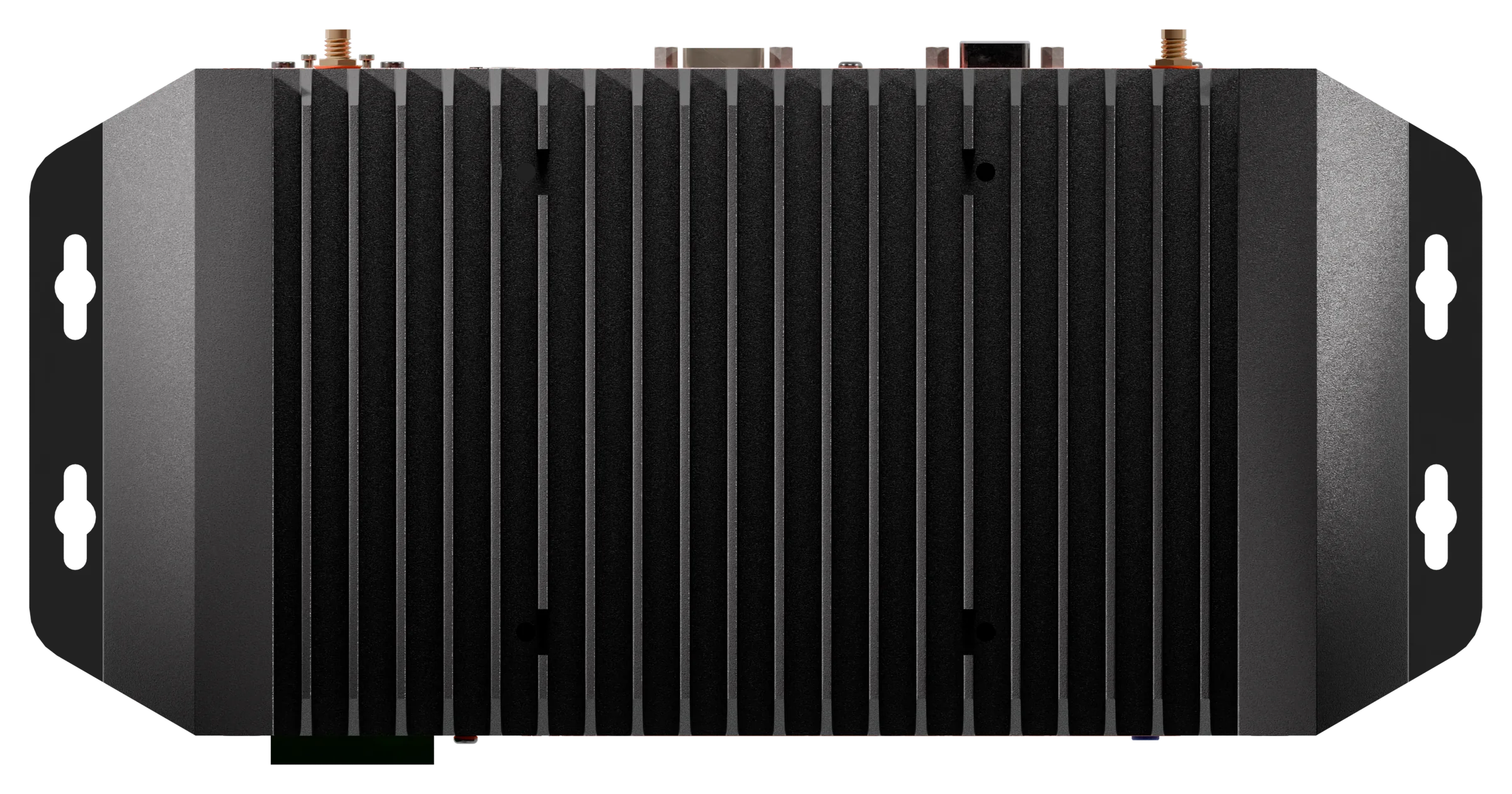

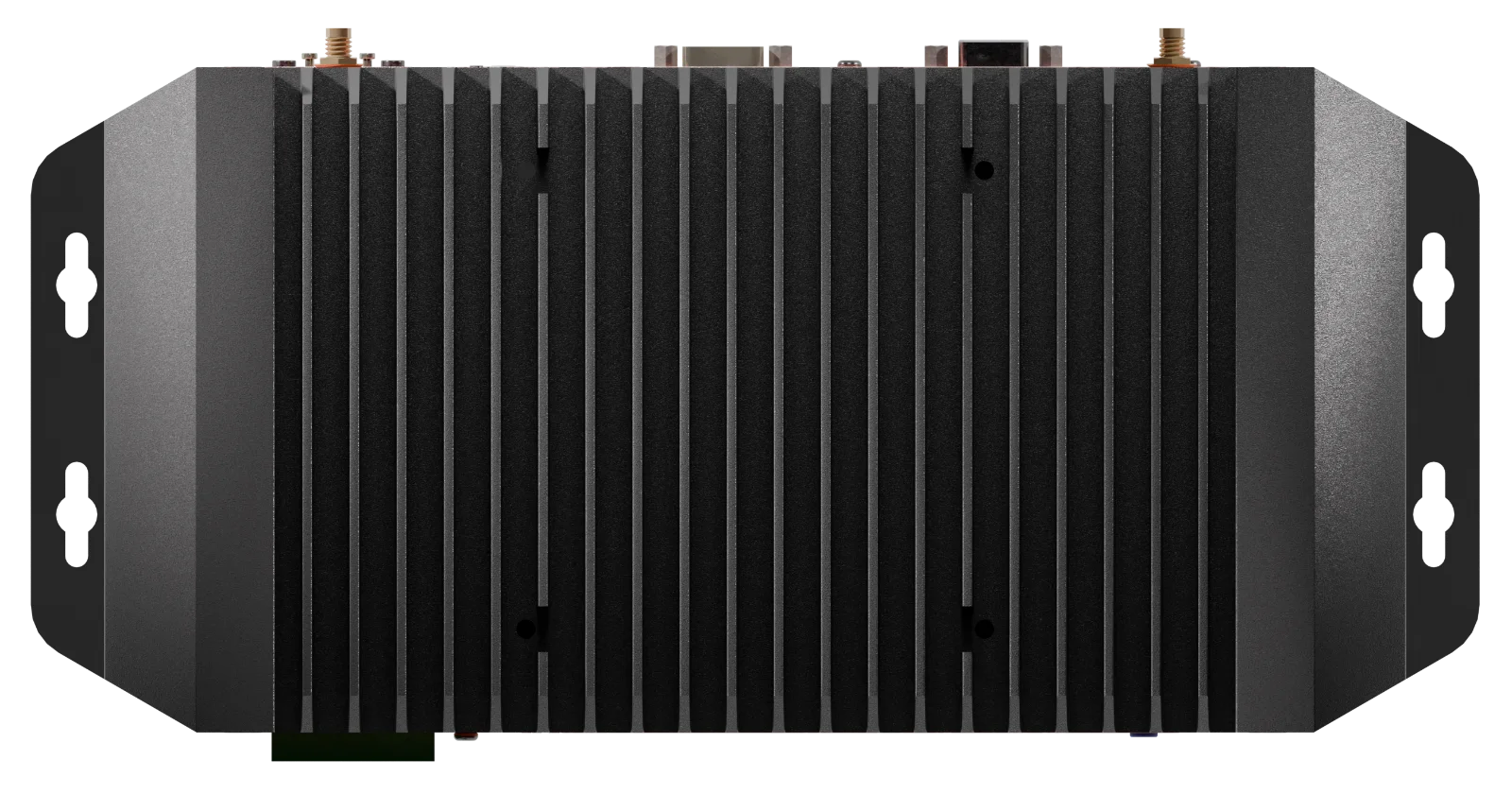

PowerBrick X, top view
