Zone 1 HMI · Rig Floor Display

RNK Bastion®

Our toughest HMI and rig floor display, certified for Class 1 Zone 1. Nearly half the weight of any other Zone 1 competitor.

Download brochure ↓Certification marks: UKCA, ATEX, CSA, FCC, cULus

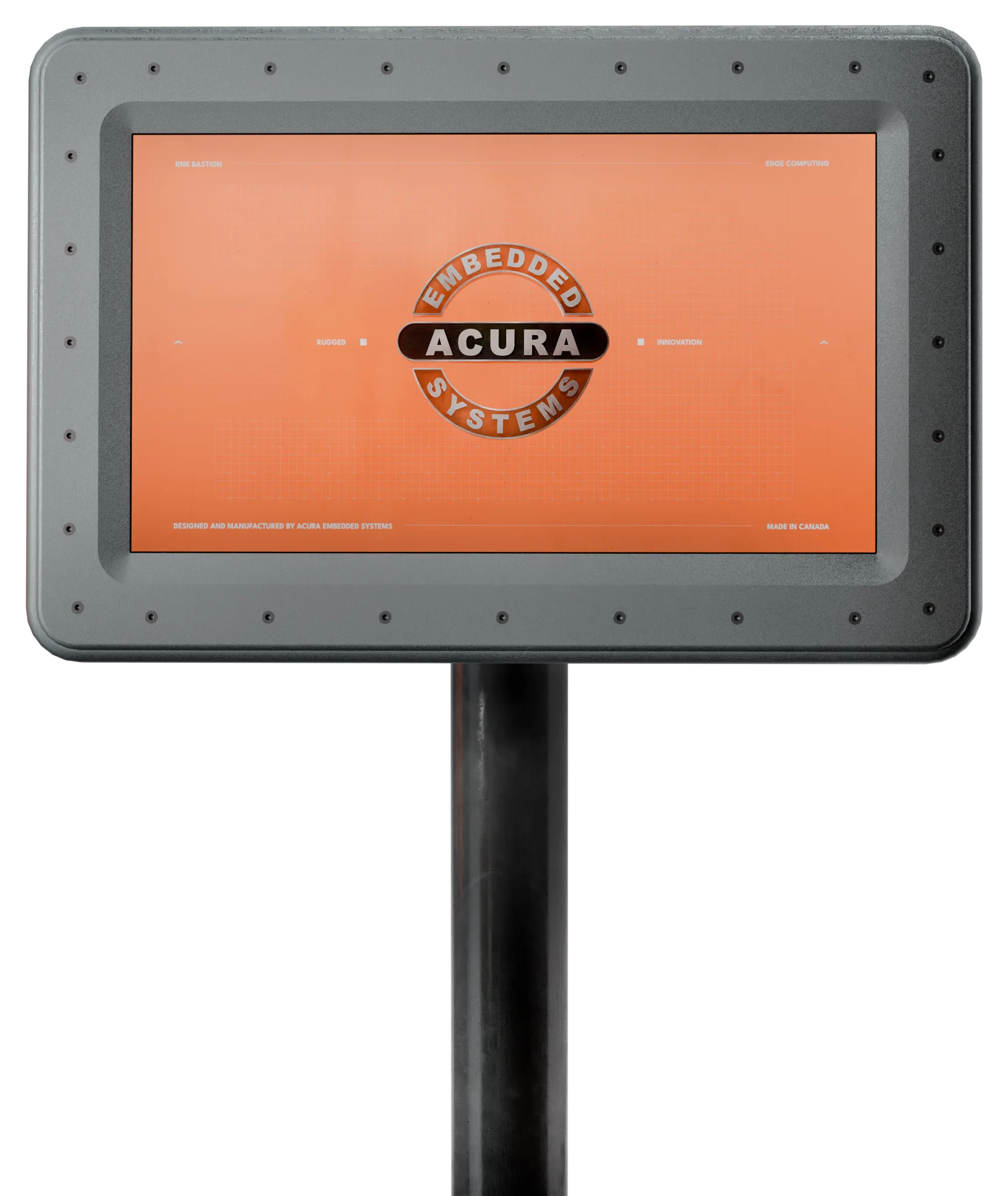

RNK Bastion Zone 1 HMI on a pole mount, front view
1000
Nits of brightness
IP66
Fully washable
Zone 1
Certified
3 Year
Warranty
Made in Canada badge
Designed and built in Canada
RNK Bastion® in the field

Get the size and configuration that works for your rig.

Zone 1 certified, half the weight of comparable HMIs, and mounting to match your console.

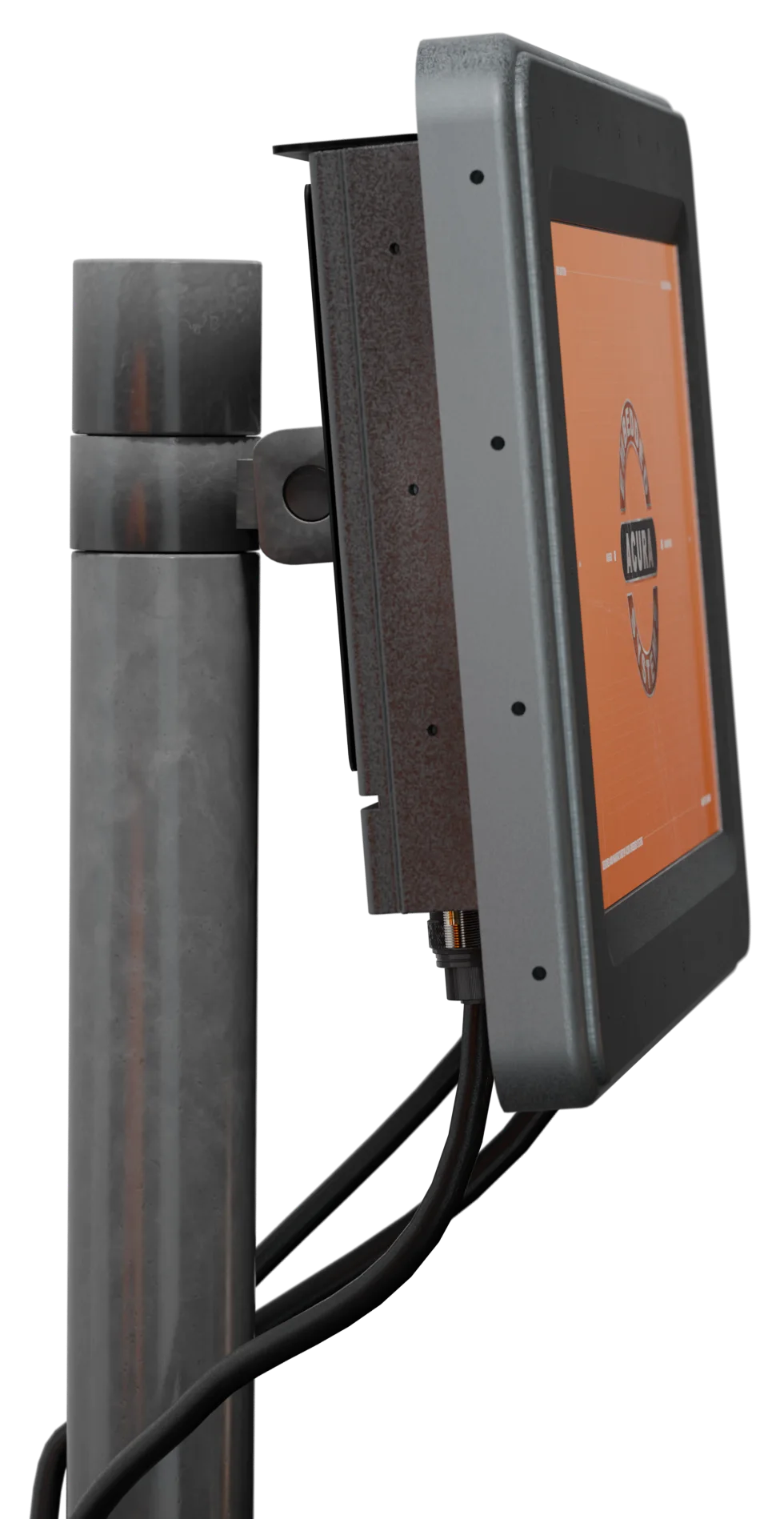

RNK Bastion on a pole mount, side profile with cabling
Lightweight

Half the weight.

Nearly half the weight of any other Zone 1 certified HMI on the market, without sacrificing performance.

Under 13 kg
Patented lightweight aluminum alloy chassis with a non-encapsulated design. Total weight under 13 kg (30 lbs).
AI Ready Performance
Intel® Ultra 5 or Ultra 7 processors with ultra-fast DDR5 RAM, up to 64GB.
M.2 NVMe storage
High-performance M.2 NVMe SSD storage, up to 4TB.
EX+ and MIL-grade
Next-generation EX+ and military-grade components from the RoughNeck series.
Built for Zone 1

Built for Zone 1.

Our toughest system, certified for Class 1 Zone 1 explosive environments.

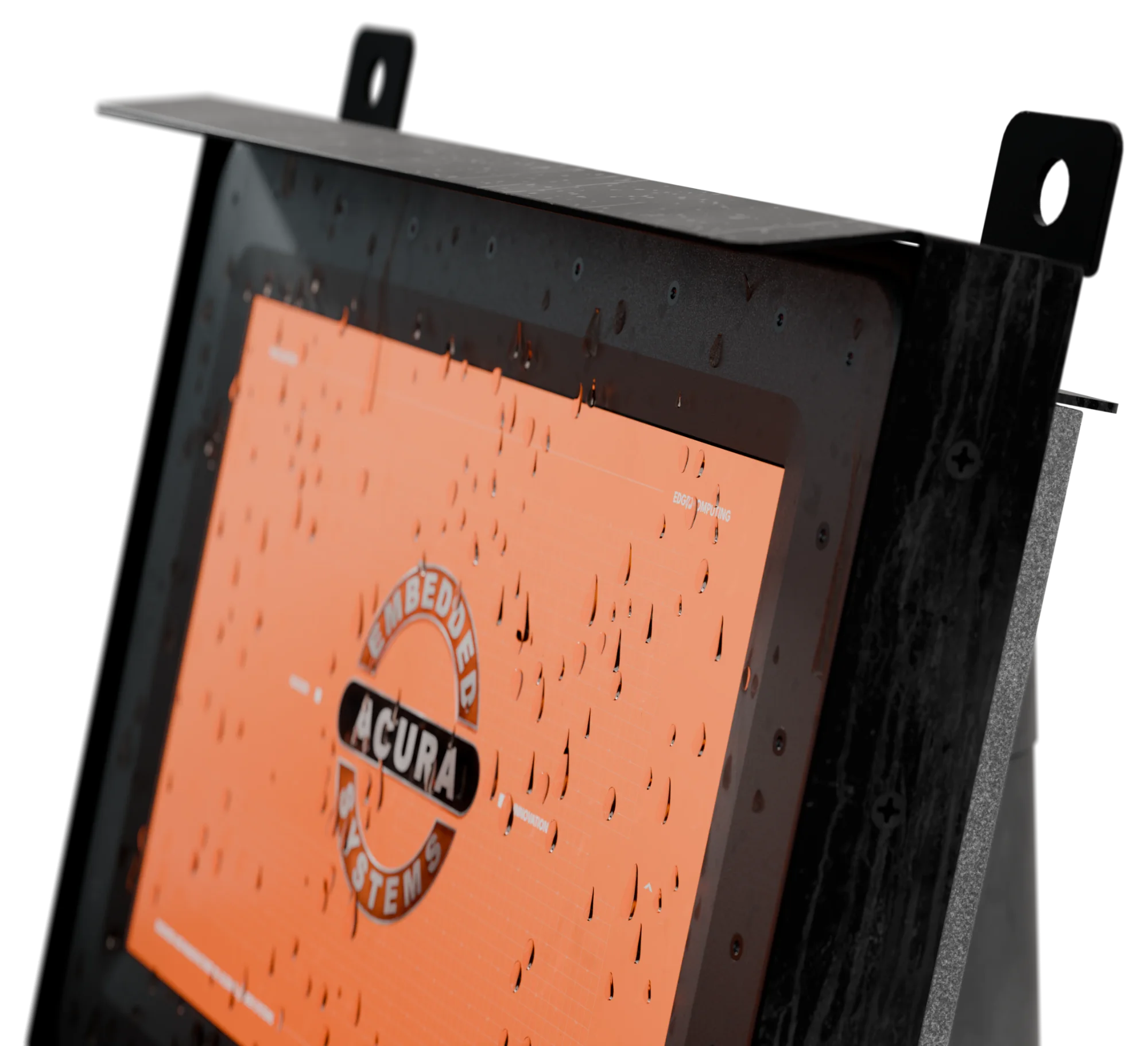

RNK Bastion screen beaded with water, on its mounting bracket

Zone 1 and Division 1

Fully IP66, Certified C1D1, Zone 1, C1D2 and Zone 2, with CSA / UL, ATEX, IECEx, CE, FCC and UKCA.

Sunlight-readable display

A 1000-nit display with black ceramic coated, anti-glare AcuGlass® featuring a 10-point capacitive touch touchscreen. Clear in direct sunlight, with added scratch and impact resistance.

Custom board integration

Integrate and quickly certify your technology into a Zone 1 ready HMI for a proprietary all-in one solution.

Offshore ready

Built to live outdoors.

Sealed on every side and readable in direct sun, so it can live on the rig floor through every season.

IP66, all sides
Dust-tight and protected against powerful water jets on every face.
−40°C to +60°C
Operating range from arctic decks to desert pads.
EX+ and MIL-grade I/O
Rugged connectors, with the I/O customized to your build.
Anti-glare glass
Black ceramic, anti-glare and scratch resistant.

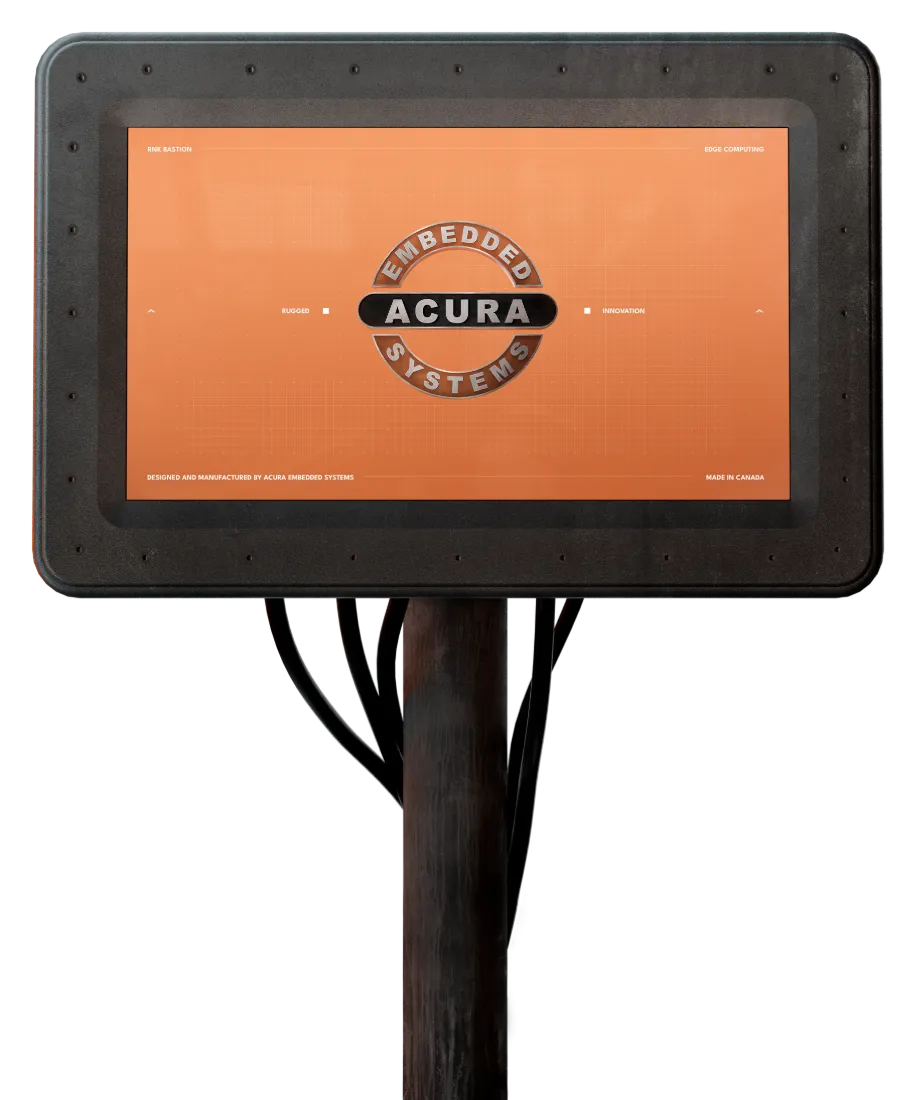

Weathered RNK Bastion on a pole mount with cables running down the pole
RNK Bastion on a pole mount in the rain, rain beading on the sunlight-readable screenRear of the RNK Bastion on a pole mount, showing the heat sink, sealed cable glands and mounting bracket
Zone 2 HMI — RoughNeck®

Our flagship Zone 2 fully sealed ATEX HMI.

A certified board integration bay and a machined I/O plate. In 22″ and 15.6″.

Two sizes

Comes in two sizes.

15.6″ and 22″, with the same sealed construction and the same Zone 1 certification.

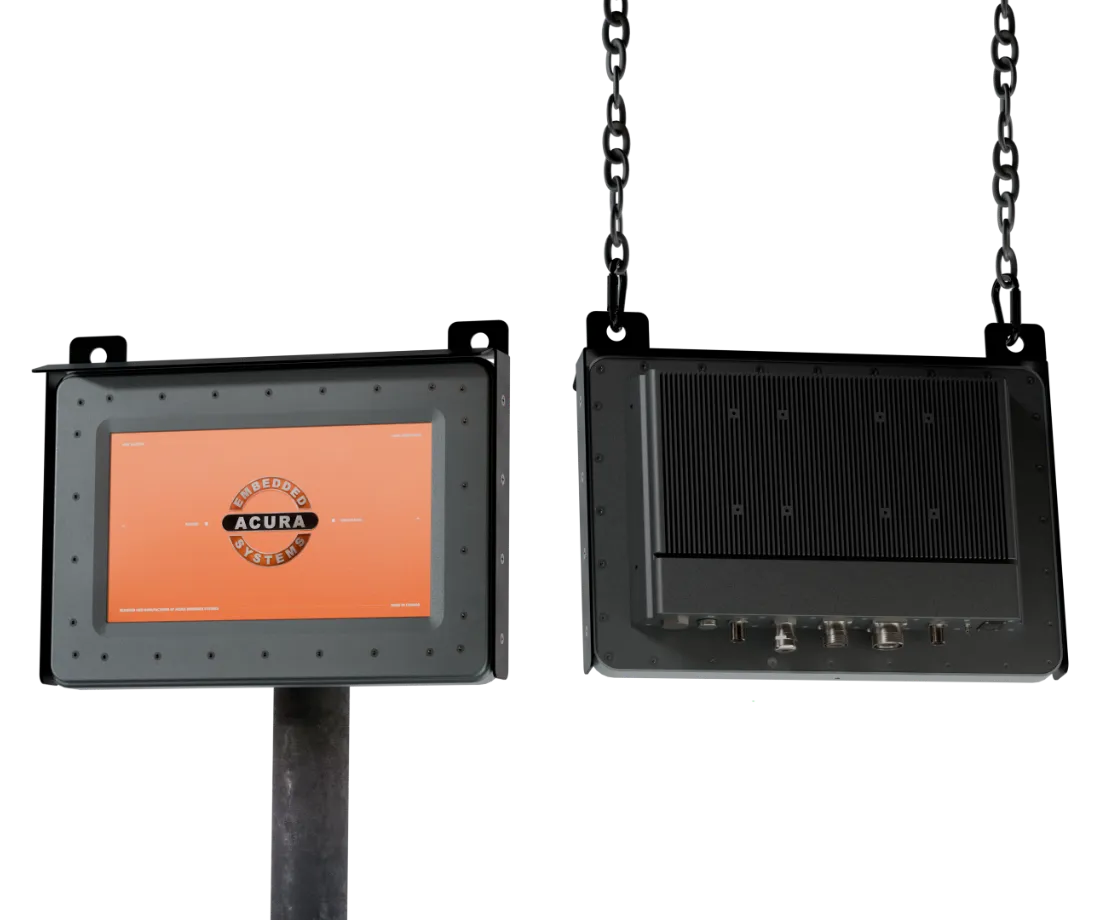

RNK Bastion 15.6-inch, front and back, on a pole mount and chain mount

15.6 inch

15.6″ display · 1920 × 1080 · 1000 nits
460 × 316 × 77 mm
12.7 kg (28.2 lbs)

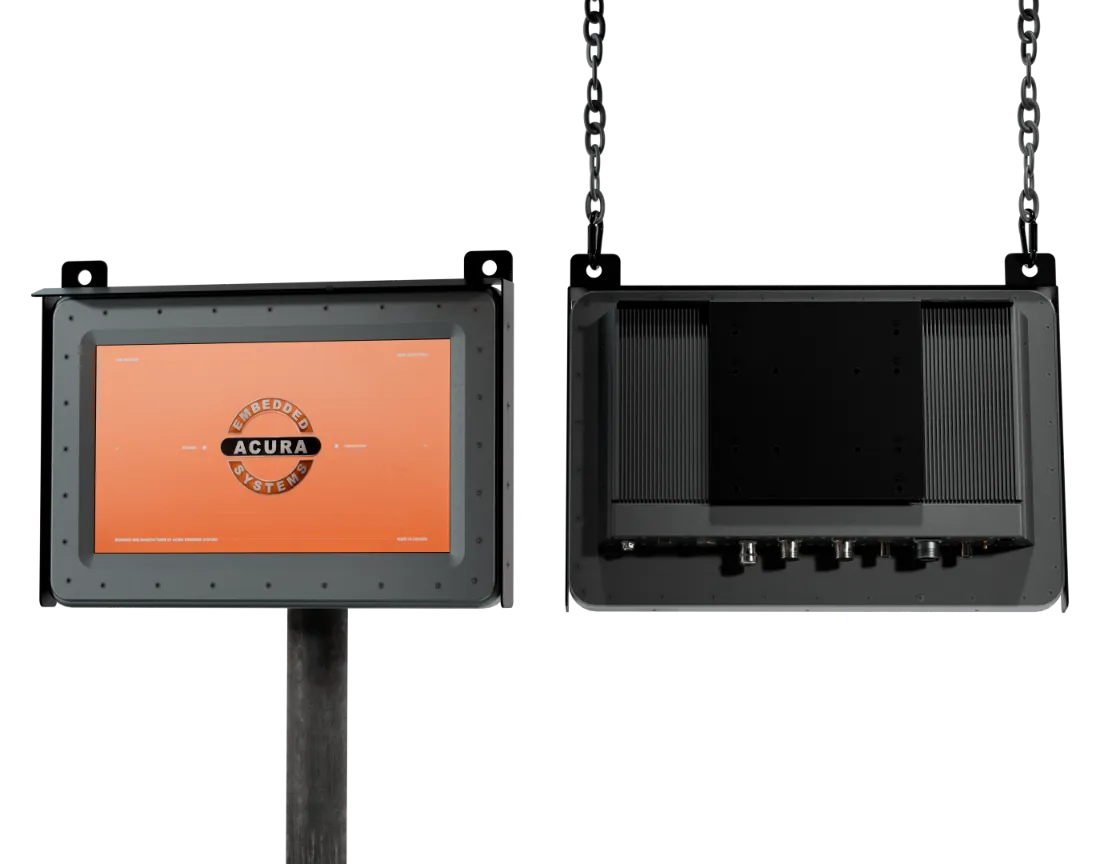

RNK Bastion 22-inch, front and back, on a pole mount and chain mount

22 inch

22″ display · 1000 nits
Same sealed Zone 1 construction as the 15.6″
Dimensions and weight on request
RNK Bastion®

Tech specs.

Model
Customizable
Display
Display glass
Processor
Memory
Storage
I/O (customizable)
Wireless
Power input
Operating system
Operating temperature
Storage temperature
Relative humidity
Ingress protection
HazLoc certifications
Certifications
Mounting
Dimensions
Weight
Construction
Model number
Warranty
Origin
Specifications from the RoughNeck Bastion brochure (Zone 1 model RNK-Z1-G1). I/O is customizable.
Seen the specs? Get a price for your configuration.
Get a quote
Downloads

Brochures and spec sheets.

FAQ

Common questions.

What is the RNK Bastion?

RNK Bastion is Acura’s Zone 1 HMI and rig floor display, purpose built for offshore rigs. It is certified for Class 1 Division 1 and Zone 1 areas.

Which certifications does RNK Bastion carry?

C1D1, Zone 1, C1D2 and Zone 2, with CSA / UL, ATEX, IECEx, CE, FCC and UKCA marks.

How much does RNK Bastion weigh?

The 15.6″ RNK Bastion weighs 12.7 kg (28.2 lbs), nearly half the weight of other Zone 1 HMIs.

Can the screen be read in direct sunlight?

Yes. The display is sunlight readable at up to 1000 nits, behind black ceramic coated, anti-glare AcuGlass® with 10-point capacitive touch.

Can RNK Bastion stay outdoors all year?

Yes. It is sealed to IP66 on all sides and operates from −40°C to +60°C.

What sizes does RNK Bastion come in?

15.6″ and 22″, with the same sealed construction and the same Zone 1 certification.

Do I need Zone 1, or is Zone 2 enough?

Equipment has to be certified for the zone it is installed in. Use RNK Bastion in Zone 1 or Division 1 areas. Where the area is Zone 2 or Division 2, RoughNeck is the usual choice.

RNK Bastion®

Tell us your specifications, and receive a quote for your custom RNK Bastion configuration.

Class 1 Zone 1 certified
Lightweight
Sunlight readable
Wireless connectivity
−40°C to +60°C
IP66 fully washable
Download brochure ↓

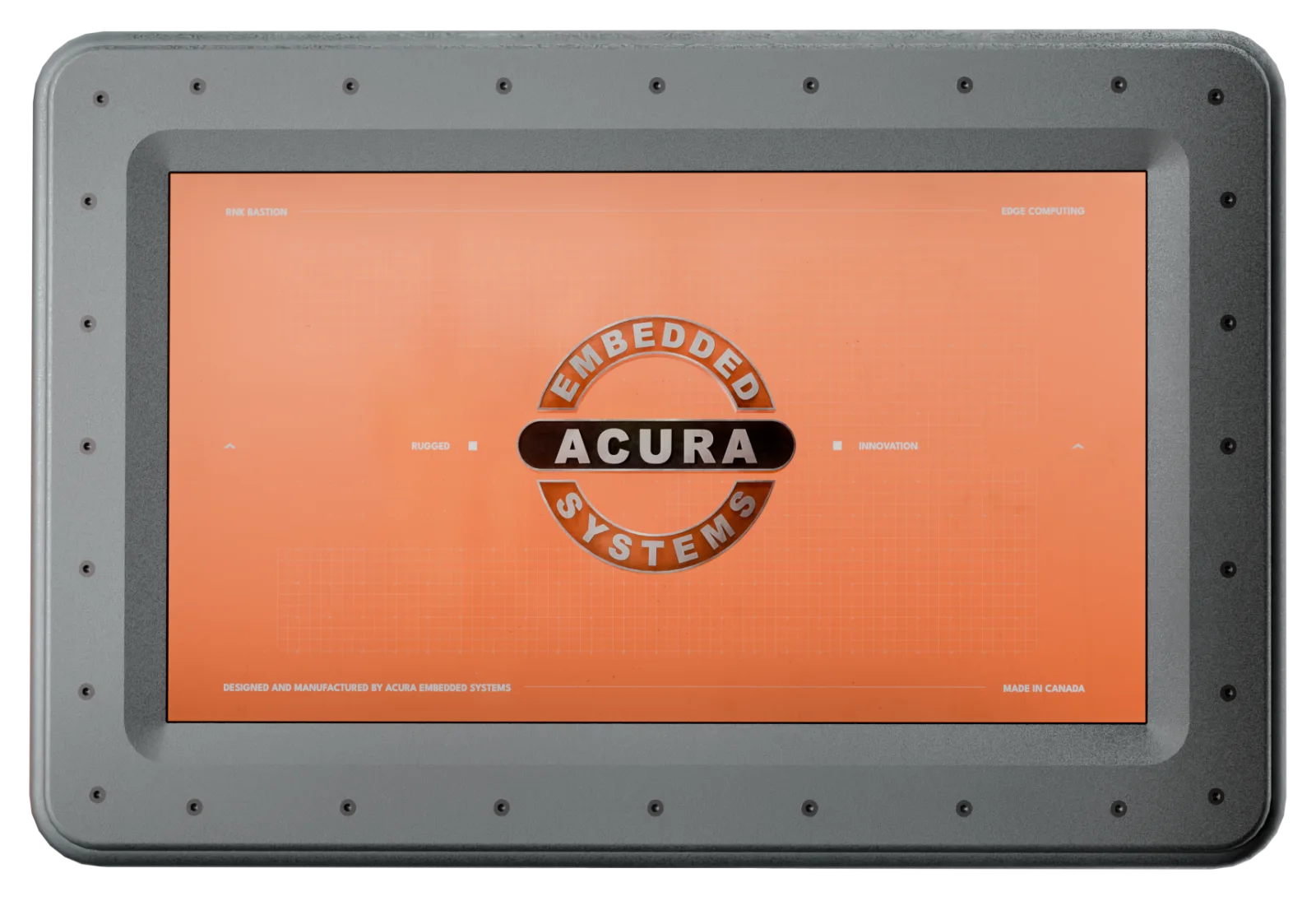

RNK Bastion Zone 1 HMI, front
