ATEX Peripherals

AcuKey TouchPad

A rugged Class 1 Division 2 certified keyboard with an integrated Force Sensing Resistor (FSR) pointing device. Built with a stainless steel enclosure and glove-friendly touchpad for harsh industrial environments.

Download brochure ↓

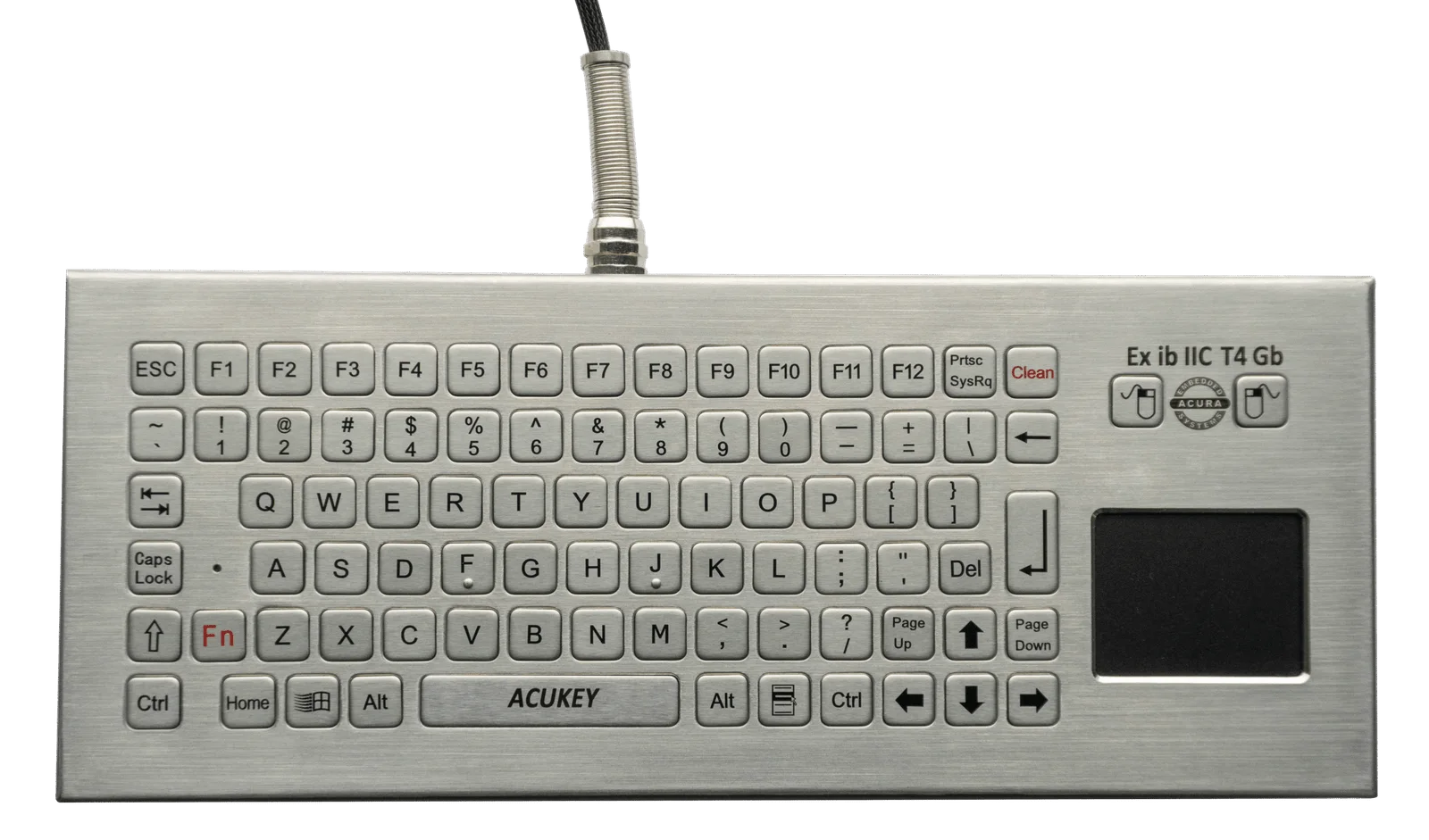

AcuKey TouchPad stainless steel keyboard with integrated touchpad
C1D2
Pre-certified
−20 to 60°C
Operating range
Stainless
Steel enclosure
3 Year
Warranty
Made in Canada badge
Designed and built in Canada
AcuKey in the field

Certified for working in harsh environments.

Stainless steel enclosure, industrial silicone rubber keys and a glove-friendly touchpad.

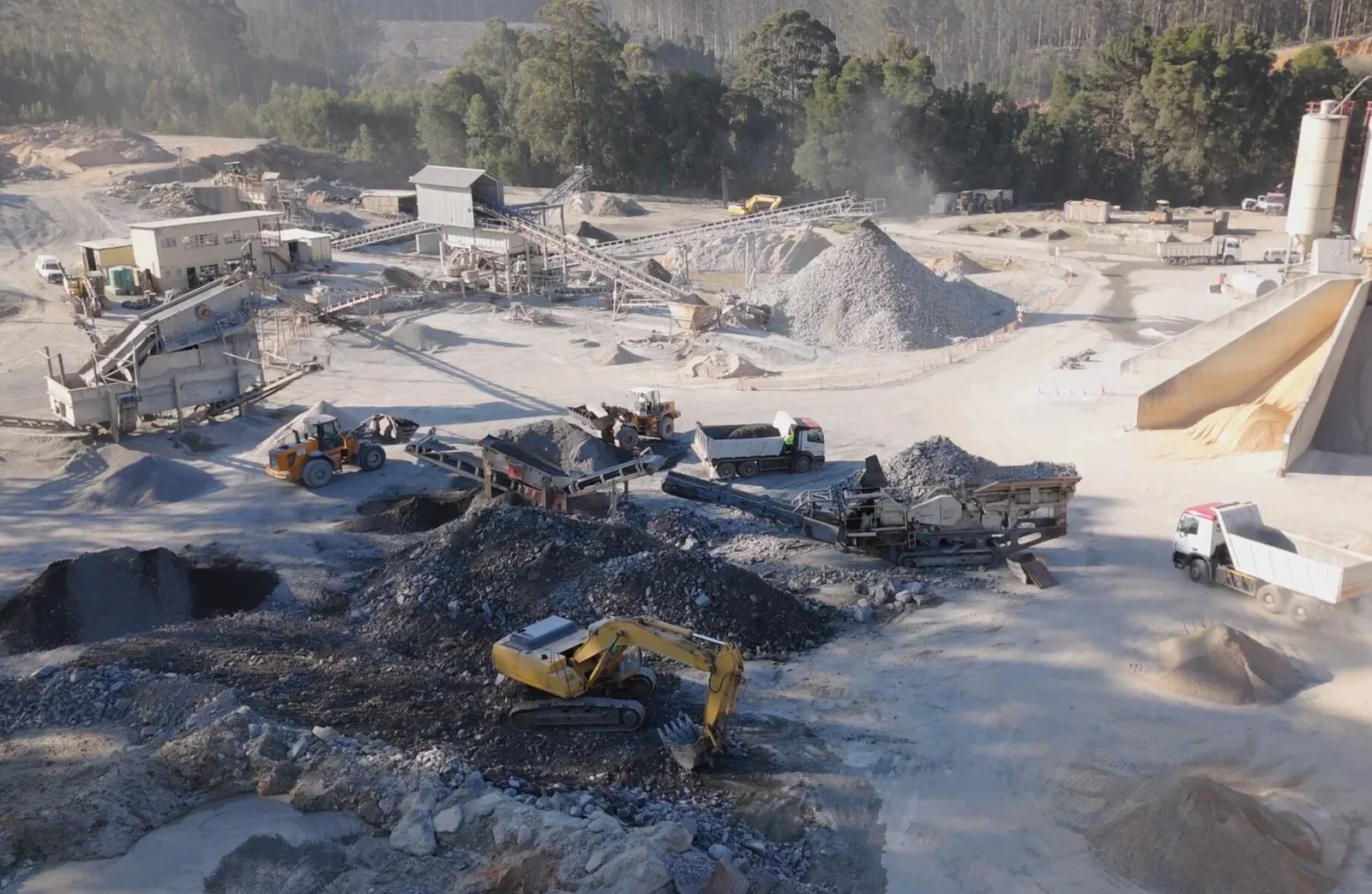

Aerial view of a quarry with heavy equipment
Built for the field

Stainless steel. C1D2 USB. Glove-ready.

Stainless steel icon

Stainless steel

Stainless steel enclosure with industrial silicone rubber.

USB connector icon

C1D2 USB connector

Pre-certified, with isolation barrier.

Glove touch icon

Glove-friendly touchpad

Integrated Force Sensing Resistor (FSR) pointing device.

AcuKey TouchPad

Tech specs.

Model
Customizable
Model number
Pointing device
Construction
Certifications
Operating temperature
Storage temperature
Relative humidity
Power
Compatibility
Dimensions
Weight
Warranty
Specifications from the AcuKey TouchPad brochure.
Seen the specs? Get a price for your configuration.
Get a quote
FAQ

Common questions.

What is the AcuKey TouchPad?

AcuKey TouchPad is a rugged keyboard with an integrated Force Sensing Resistor (FSR) touchpad, certified for Class 1 Division 2 hazardous locations.

Which certifications does AcuKey carry?

Class I Division 2 Groups A, B, C and D; Class II Division 2 Groups F and G; and Class III Division 2. It is also rated NEMA 4X, UL60950 and FCC Part 15 Class B.

Does it work with gloves on?

Yes. The touchpad is a glove-friendly FSR pointing device, and the keys are industrial silicone rubber in a stainless steel enclosure.

How does AcuKey connect?

By USB, through a pre-certified C1D2 USB connector with an isolation barrier. It is powered from the computer’s port and works with Windows and Macintosh operating systems.

What temperature range does it work in?

−20°C to +60°C in operation, and −40°C to +85°C in storage.

How big is it?

It measures 361 × 145 × 31.5 mm (14.2″ × 5.70″ × 1.24″) and weighs 2.78 kg (6.15 lbs). The model number is KB02-24-C1D2. It is built to sit beside Acura computers in hazardous areas.

AcuKey TouchPad

Get a no-obligation quote for your AcuKey keyboard.

Stainless steel
C1D2 USB connector
Glove-friendly touchpad
Integrated FSR pointing device
3 year warranty
Made in Canada
Download brochure ↓
AcuKey TouchPad keyboard
