Zone 2 HazLoc HMI · Rig Floor Display

RoughNeck®

RoughNeck is our flagship fully sealed HazLoc HMI and rig floor display (RFD), certified for Class 1 Division 2 and ATEX Zone 2. It has a certified board integration bay and a machined I/O plate, in 22″ and 15.6″.

Download brochure ↓Certified UKCA, Class 1 Division 2, ATEX, CSA, FCC and cULus

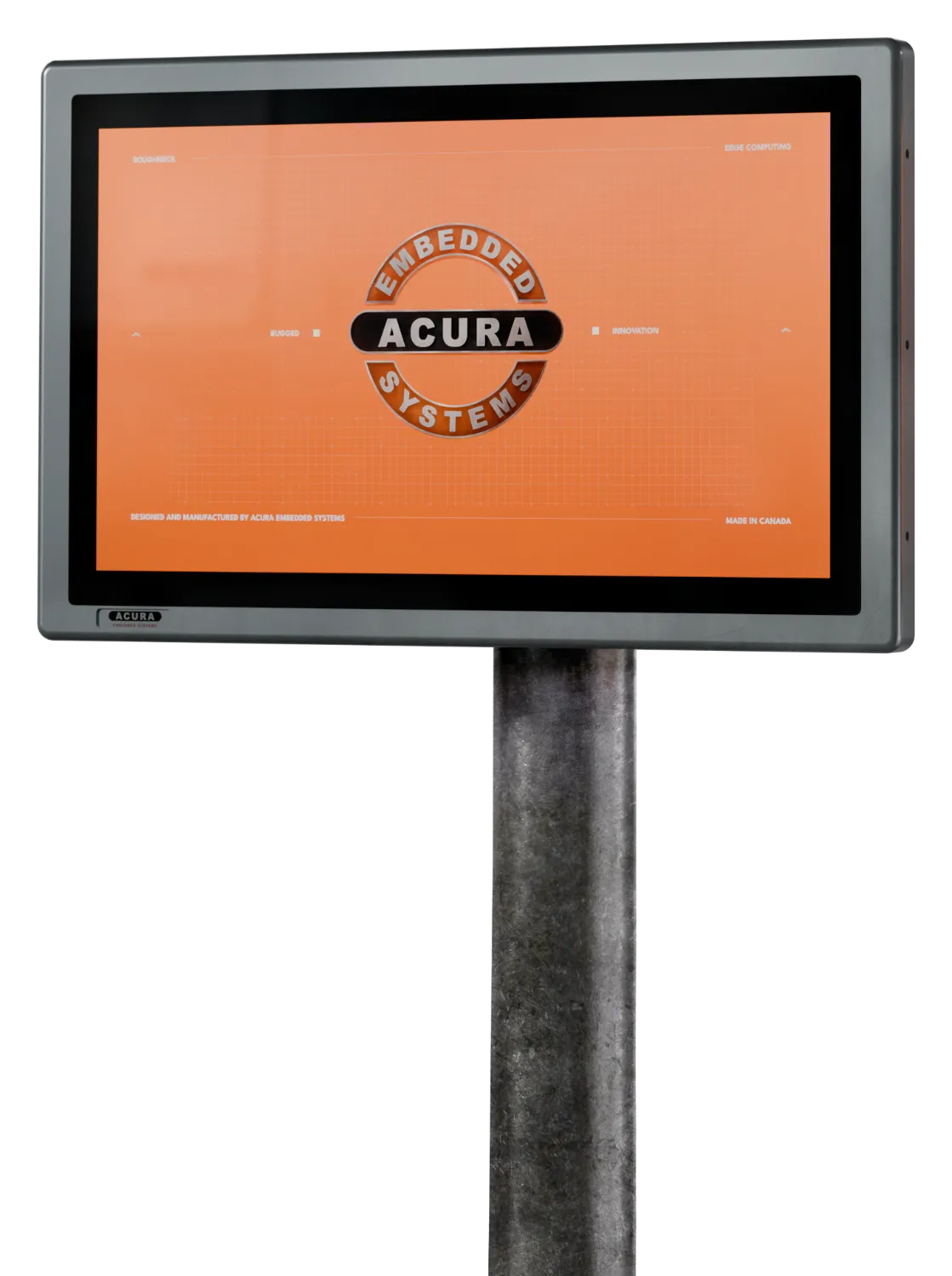

RoughNeck outdoor hazardous-location panel computer on a pole mount
1000
Nits of brightness
IP65
Fully washable
Zone 2
ATEX certified
3 Year
Warranty
Made in Canada badge
Designed and built in Canada
RoughNeck® in the field

Get the size and configuration that works for your site.

Display 22″ or 15.6″. Certified board integration bay. I/O plate machined to your connector list.

Design

Every angle, made for the field.

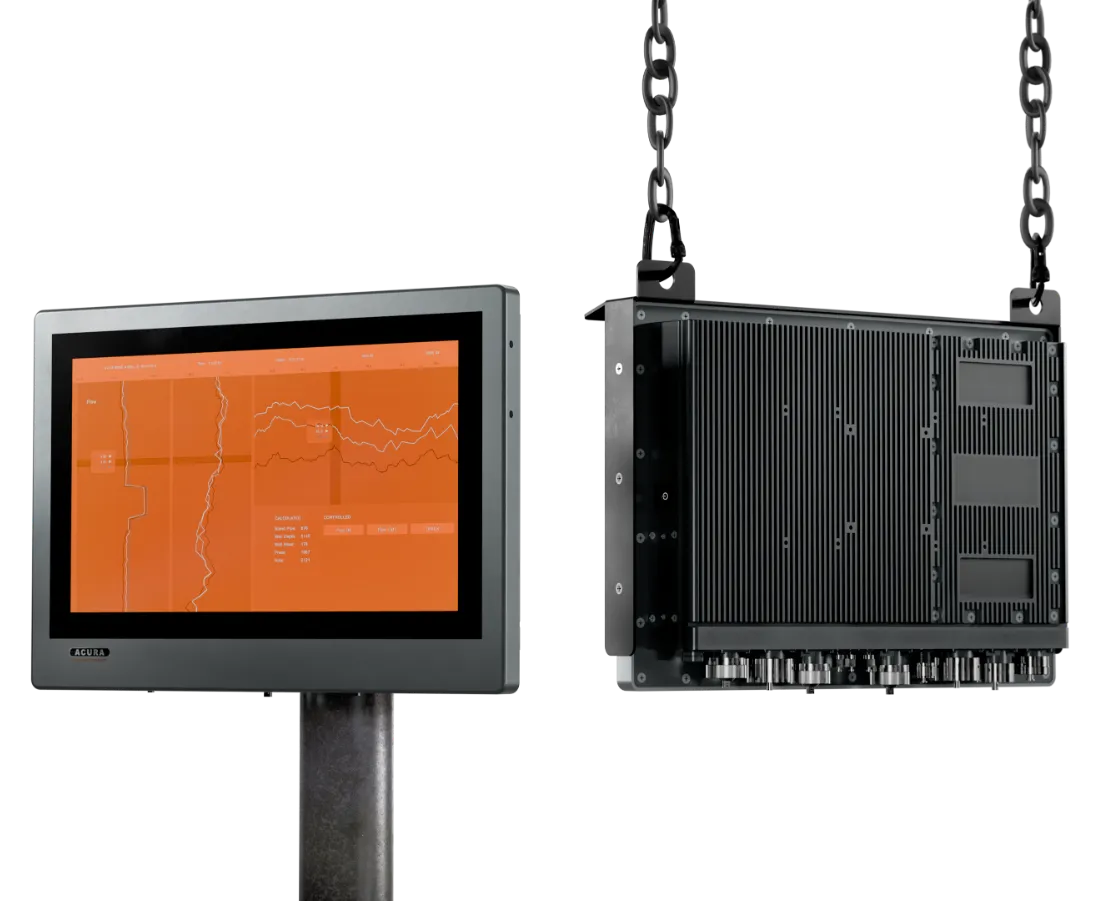

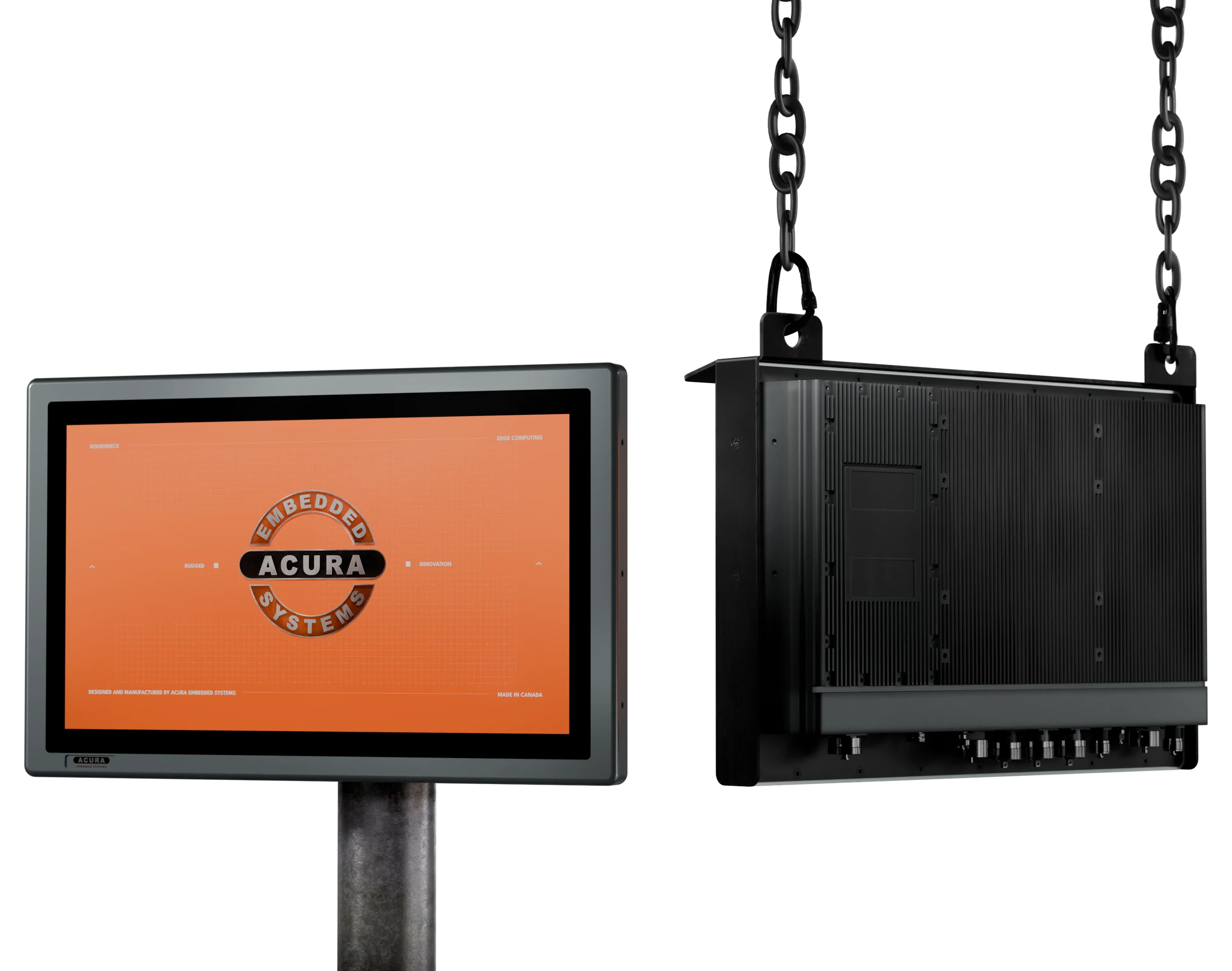

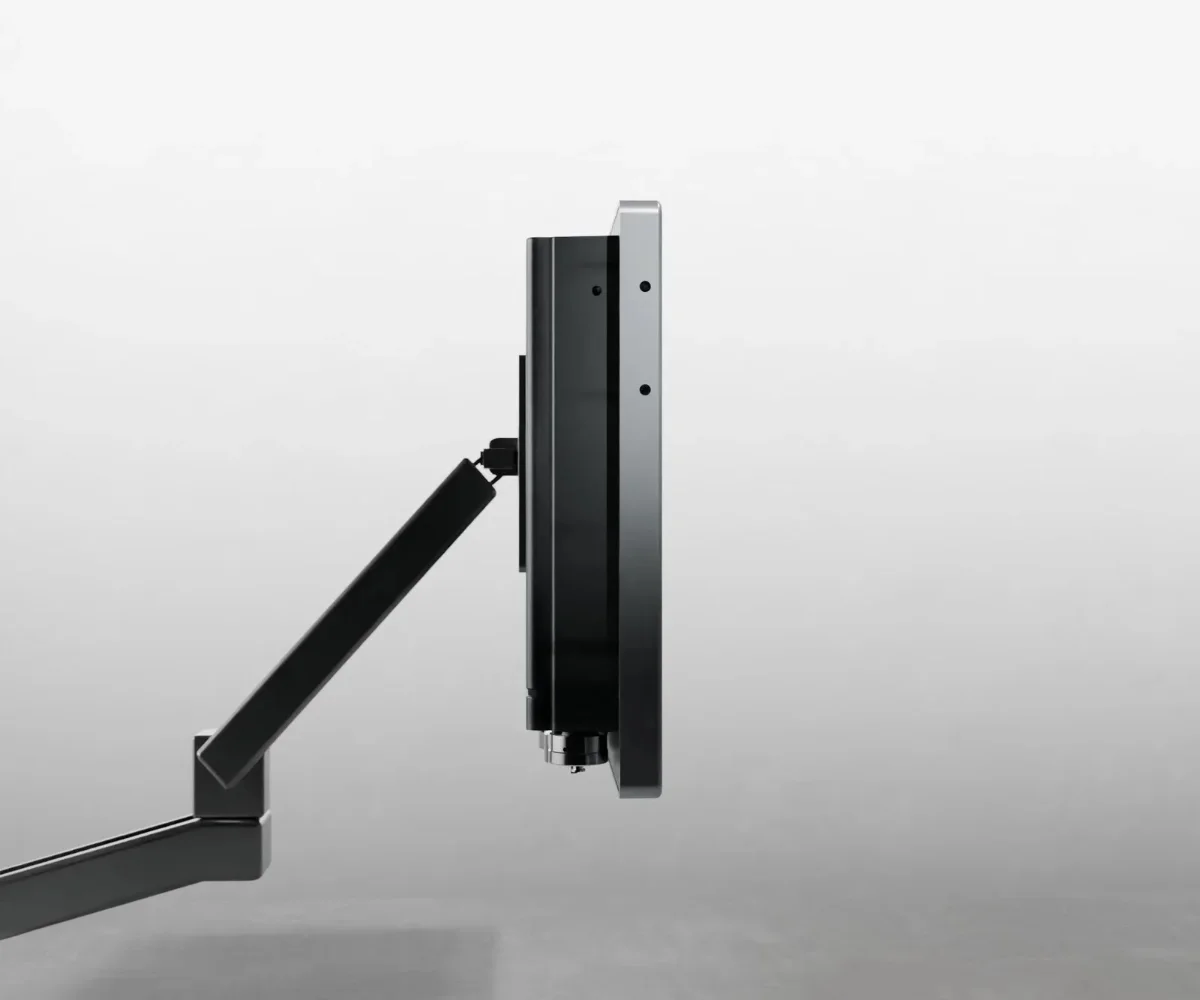

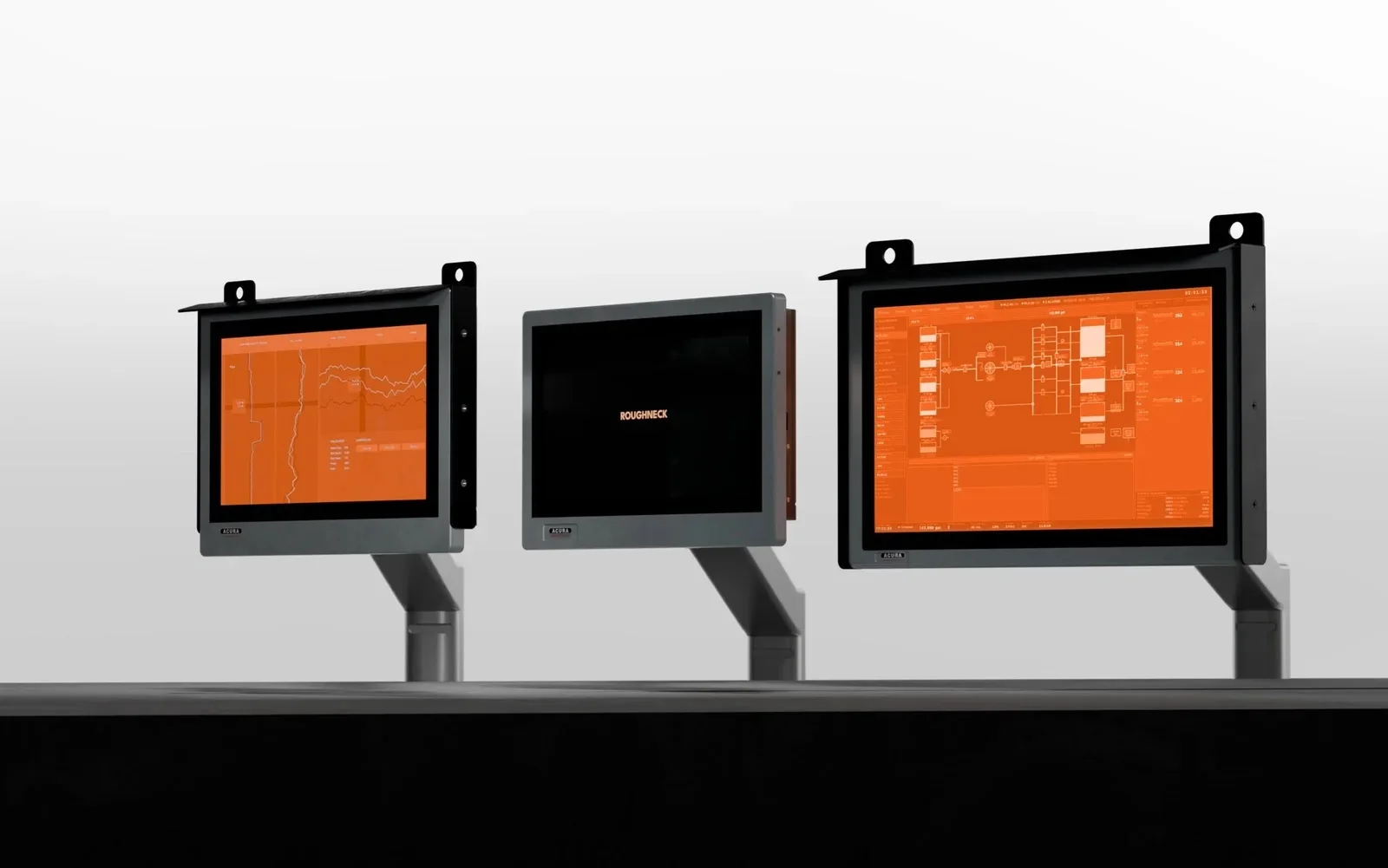

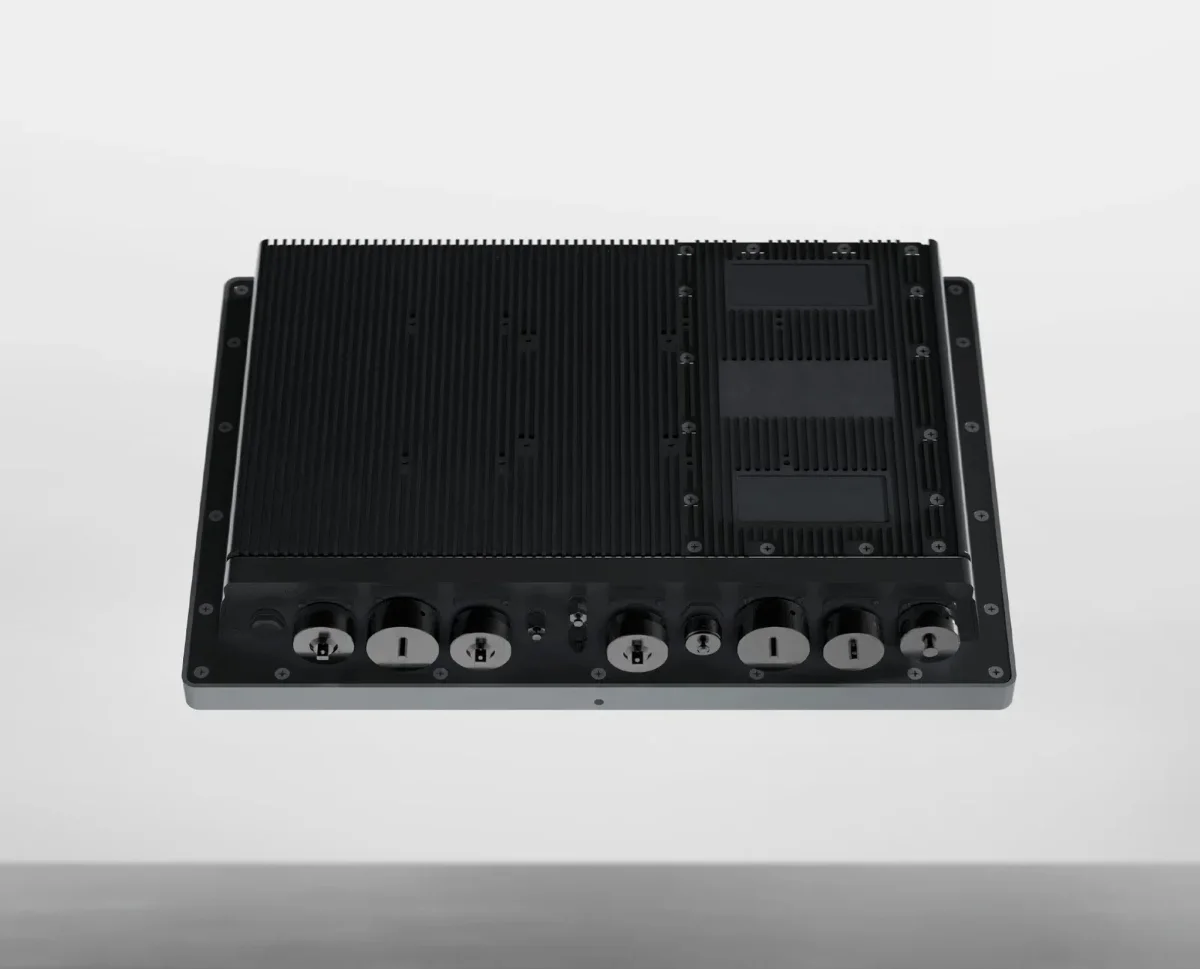

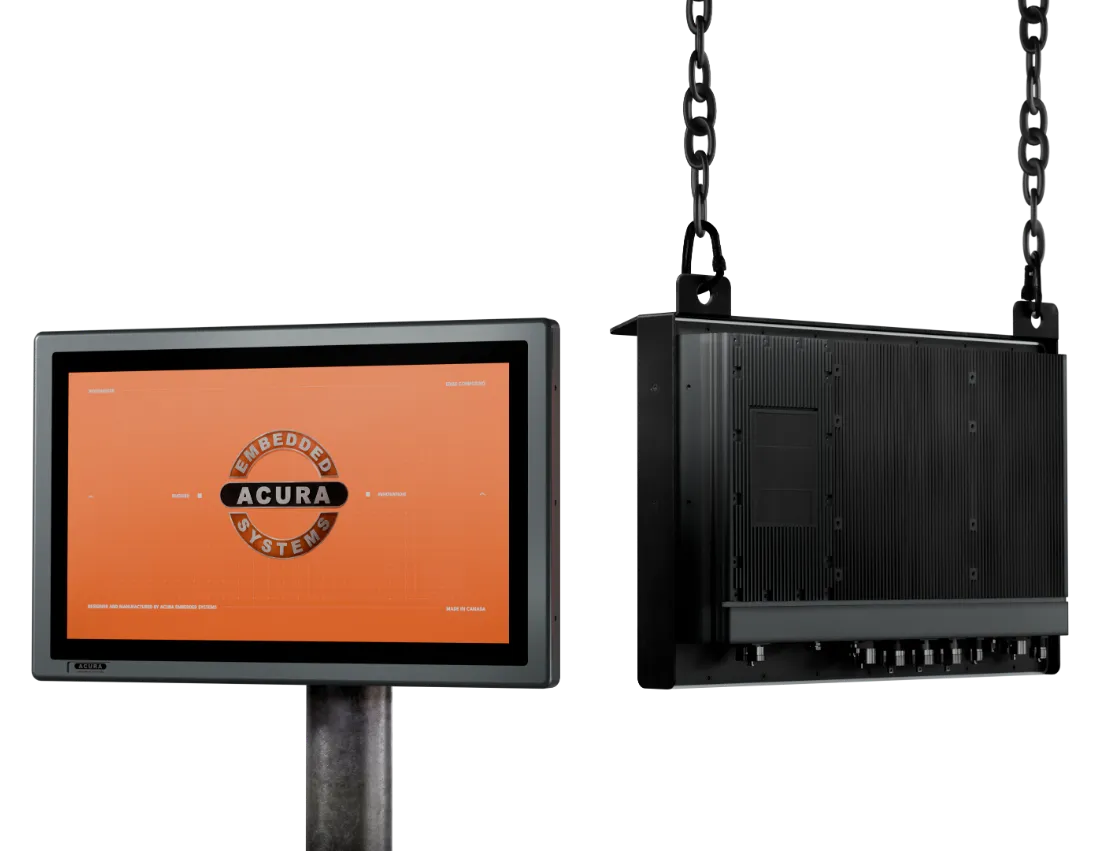

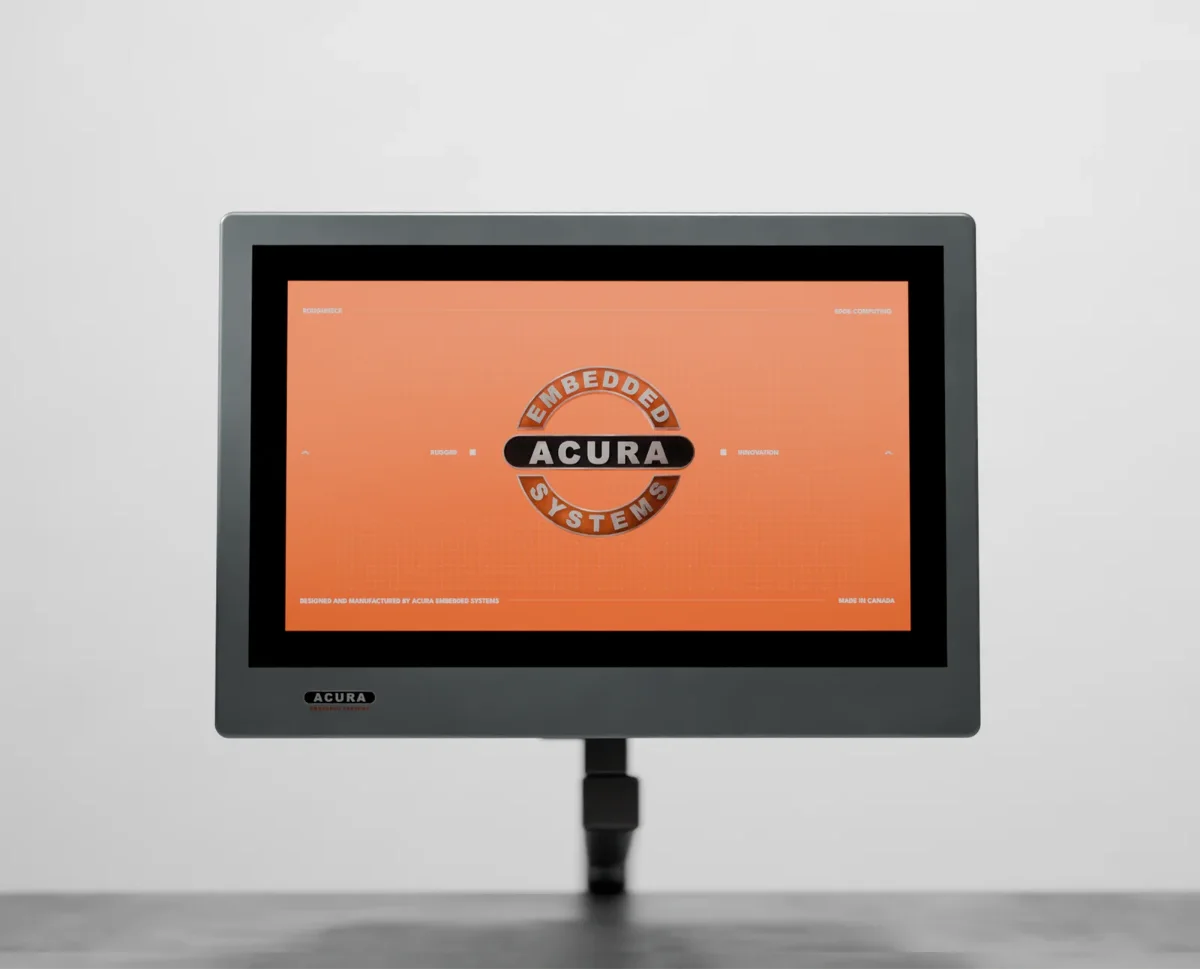

A sealed aluminum housing with a 1000-nit touchscreen up front and industrial connectors along the bottom edge. Mount it by chain or VESA on a pedestal, an arm or a wall.

RoughNeck panel PC on a pole mount under a storm sky, running a drilling monitor

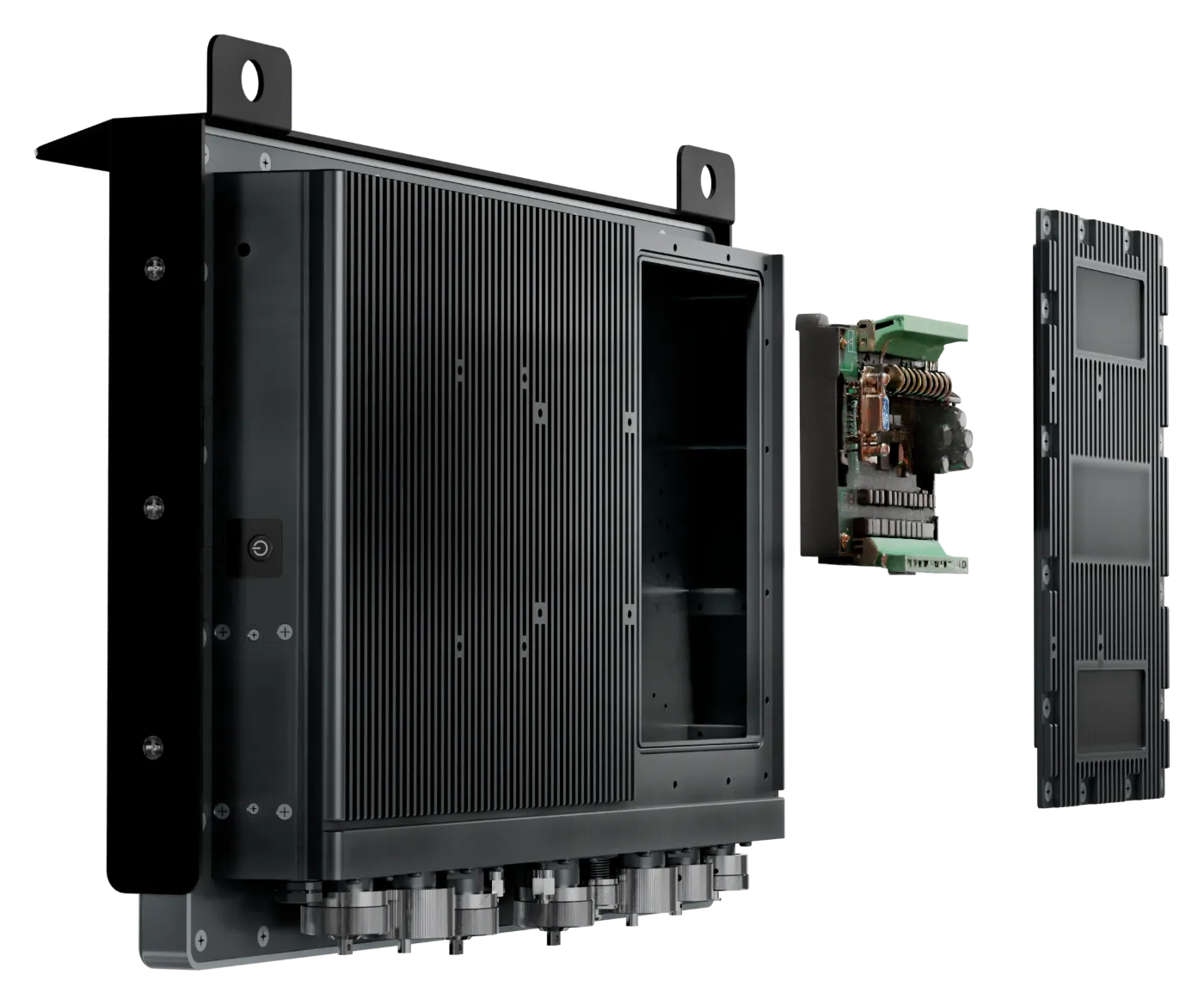

RoughNeck chassis opened to show the board integration bay
Embed and certify

Board integration space.

Pressure decoders, MWD boards, modems and DAC cards mount directly inside the sealed chassis — in customizable board space that is fully covered under the unit’s existing certification.

Fully customizable I/O
Choose only the connectors you need. The modular design matches the system to your exact requirements.
Cutting-edge processing
12th Gen or 14th Gen Intel® processors for efficient, multi-threaded performance.
Memory & storage
Up to 64GB DDR5 RAM and up to two 4TB SSDs with optional RAID.
Optional AirJet cooling
Solid-state active cooling for up to 30% improved thermal performance in extreme temperatures.

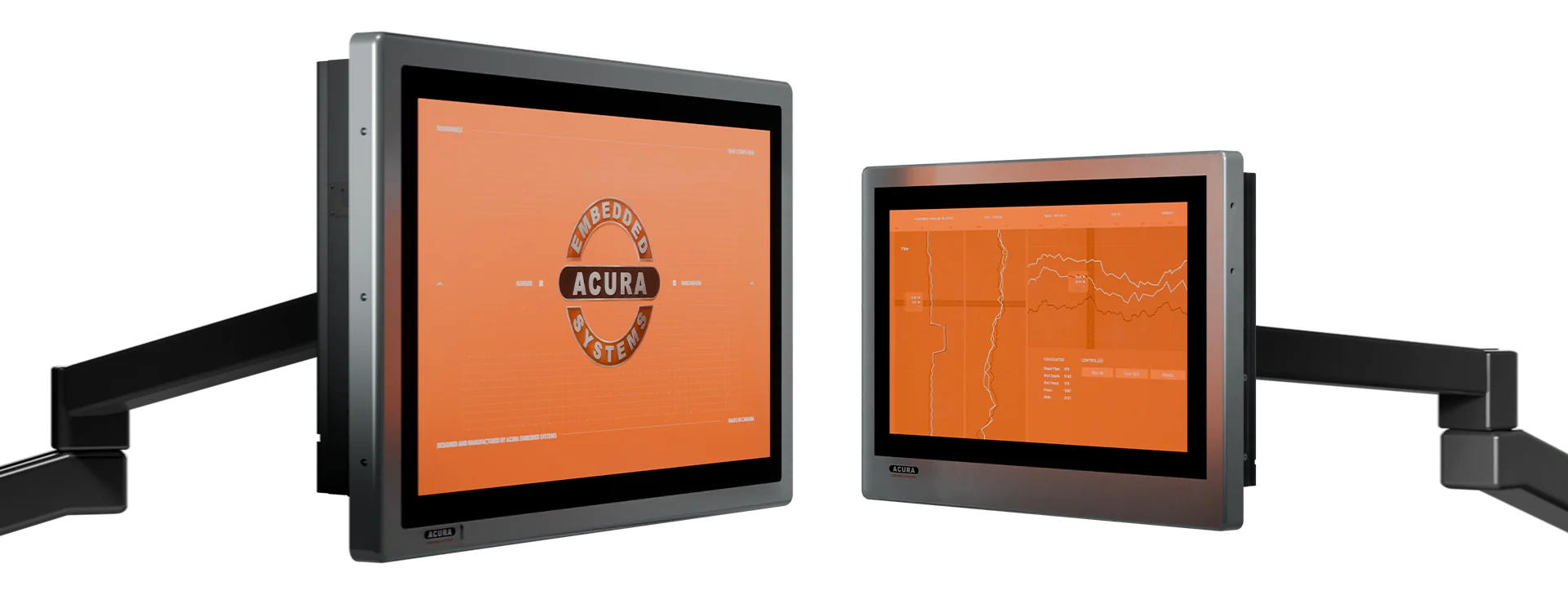

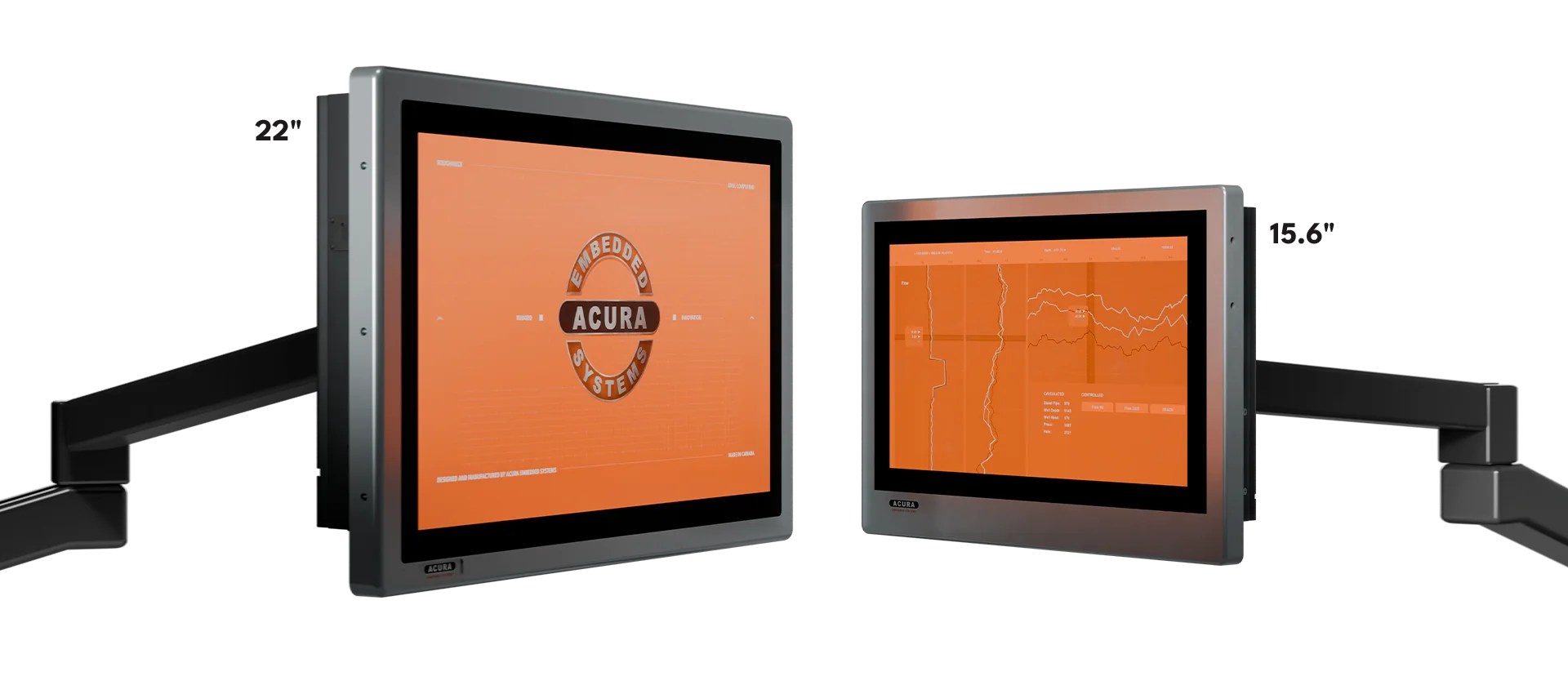

RoughNeck 22-inch and 15.6-inch side by side on articulating arms
Pick your display

Comes in two sizes.

22 inch

21.5″ LED backlit LCD · 1920 × 1080
562 × 354 × 77.8 mm
10.6 kg (23.37 lbs)
Download brochure ↓

15.6 inch

15.6″ LED backlit LCD · 1920 × 1080
422 × 289.5 × 66.3 mm
6.0 kg (13.23 lbs)
Download brochure ↓
Solid-state cooling

AirJet® inside

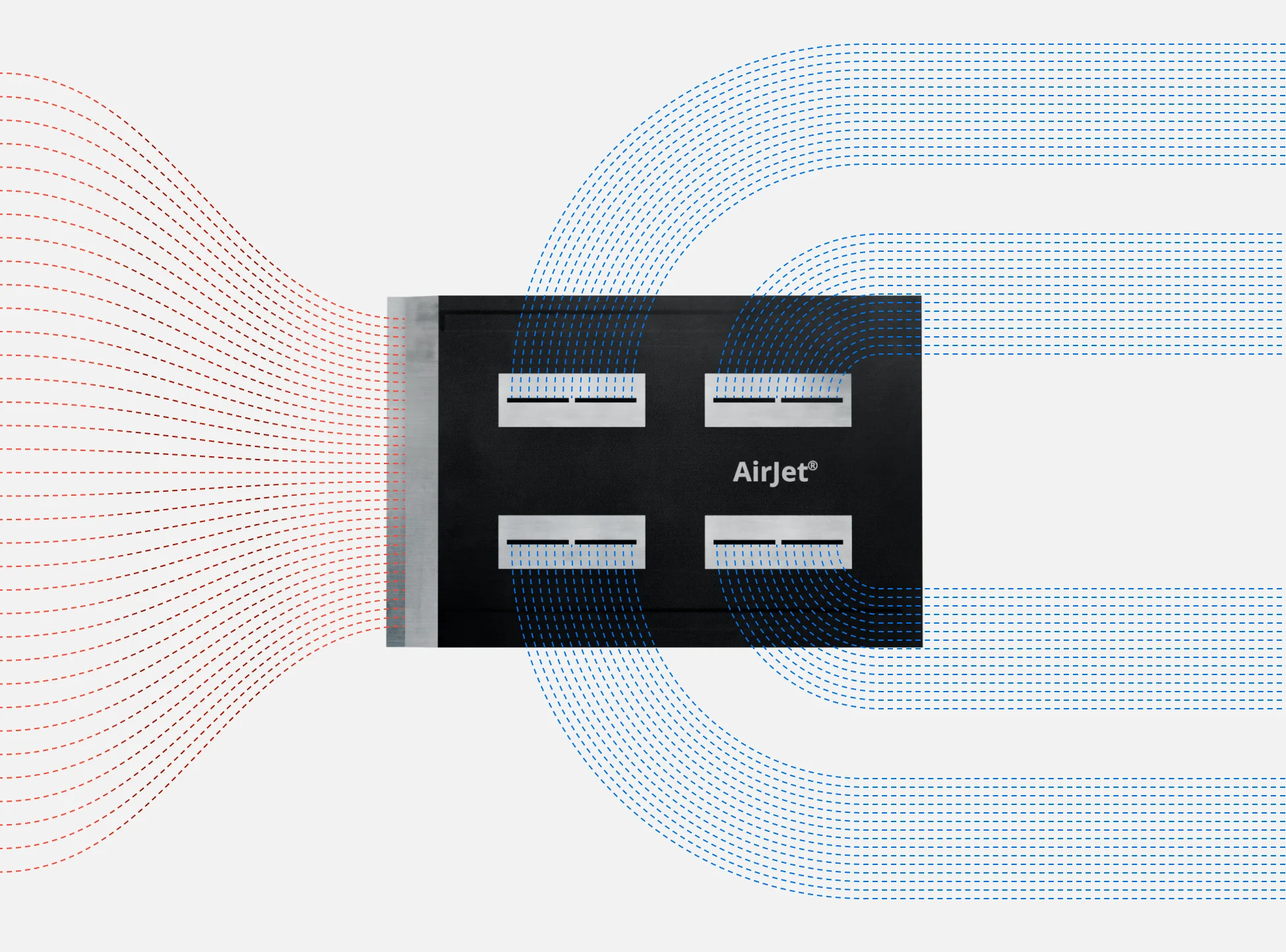

RoughNeck is sealed on every side, so there is nowhere for a fan to pull air from. Our patented AirJet solid-state active cooling moves heat without moving parts, and our proprietary IP68-rated plenum system brings cool air in and exhausts hot air out while keeping dust and water out. The result is up to 30% better thermal performance in extreme temperatures.

No moving parts

Ultrasonic MEMS membranes inside the chip create high-velocity pulses of air. Nothing spins, wears out or clogs.

More headroom in the heat

Faster processors hold their speed on an open deck or a rig floor in full sun.

IP68-rated plenum

Our proprietary plenum system brings cool air in and exhausts hot air out of the system, while staying dust and water resistant. No fans and no liquid.

Zone 1 HMI — RoughNeck Bastion

The most powerful, lightest-weight Zone 1 certified HazLoc HMI in the world.

Purpose built for offshore rigs, with a 1000-nit sunlight-readable touchscreen and a total weight of less than 13 kg (30 lbs).

RoughNeck®

Tech specs.

Model
Customizable
Display
Processor
Memory
Storage
I/O (configurable)
Wireless
Power input
Operating system
Operating temperature
Ingress protection
HazLoc certifications
Certifications
Mounting
Construction
Cooling
Warranty
Specifications from the RoughNeck 22 specification sheet (issue 1.5). I/O is configurable.
Seen the specs? Get a price for your configuration.
Get a quote
FAQ

Common questions.

What is the RoughNeck used for?

RoughNeck is a fully sealed outdoor HMI and panel PC for hazardous locations. Crews use it as a rig floor display (RFD) and operator station on rig floors, in drillers’ cabins and on wellsites.

Which hazardous areas is RoughNeck certified for?

RoughNeck is certified for Class 1 Division 2 (C1D2), Class 1 Zone 2 (C1Z2), ATEX and IECEx. For Zone 1 or Division 1 areas, use the RNK Bastion.

Can the screen be read in direct sunlight?

Yes. The display is sunlight readable at up to 1000 nits, behind AcuGlass anti-glare glass with capacitive multi-touch.

What sizes does RoughNeck come in?

Two. The 15.6″ model weighs 6.0 kg and the 22″ model (21.5″ panel) weighs 10.6 kg. Both are 1920 × 1080.

Can we fit our own boards and connectors?

Yes. Pressure decoders, MWD boards, modems and DAC cards mount in the board integration bay inside the sealed chassis, covered under the unit’s existing certification. The I/O plate is machined to your connector list.

What power and temperature range does it need?

RoughNeck runs on 110–240V AC or 9–36V DC and operates from −40°C to +60°C. It is sealed to IP65 on all sides.

What software does RoughNeck run?

Windows 10 IoT LTSC, Windows 11 IoT LTSC, Windows 11 Pro or Linux, on 12th Gen Intel Core i5 or i7 or Intel Core Ultra processors. It is a full x86 computer, so software written for Windows or Linux runs on it.

RoughNeck®

Tell us your specifications, and receive a quote for your custom RoughNeck configuration.

AcuGlass anti-glare
Customizable I/O ports
1000 nit brightness
Intel 12th / 14th Gen
Board integration
IP65 fully washable
AirJet® cooling option
Download brochure ↓

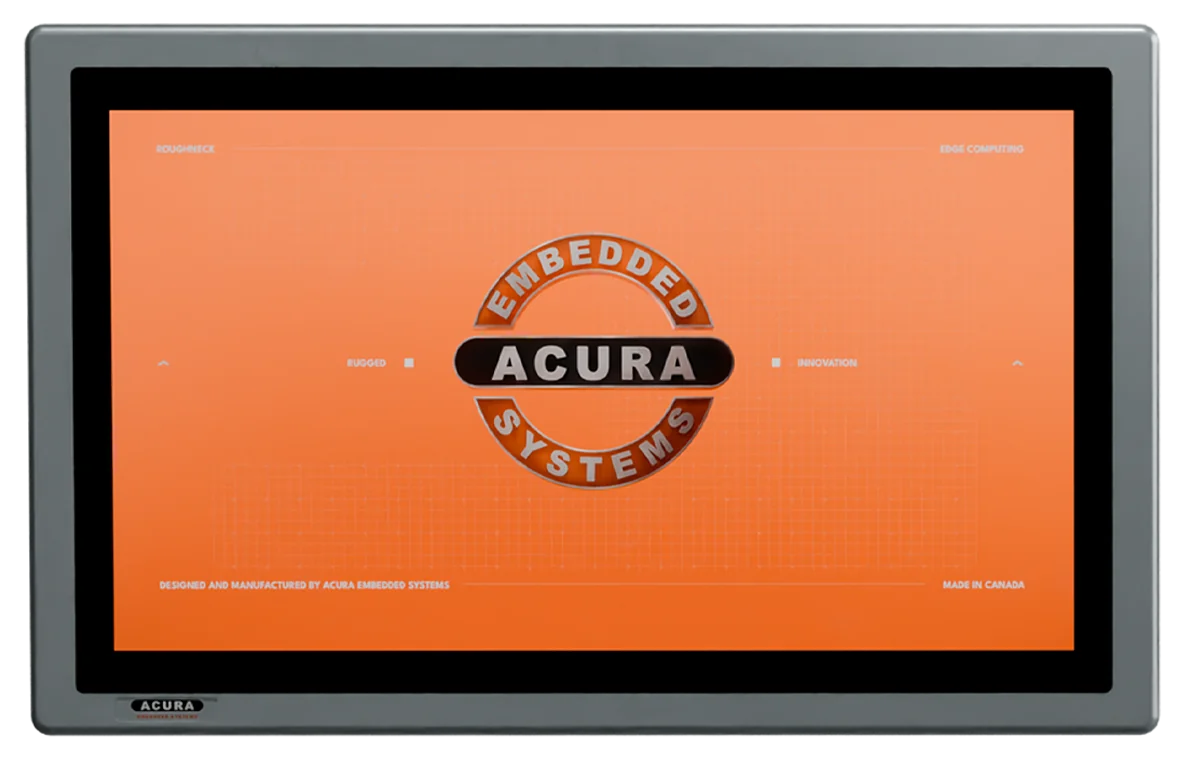

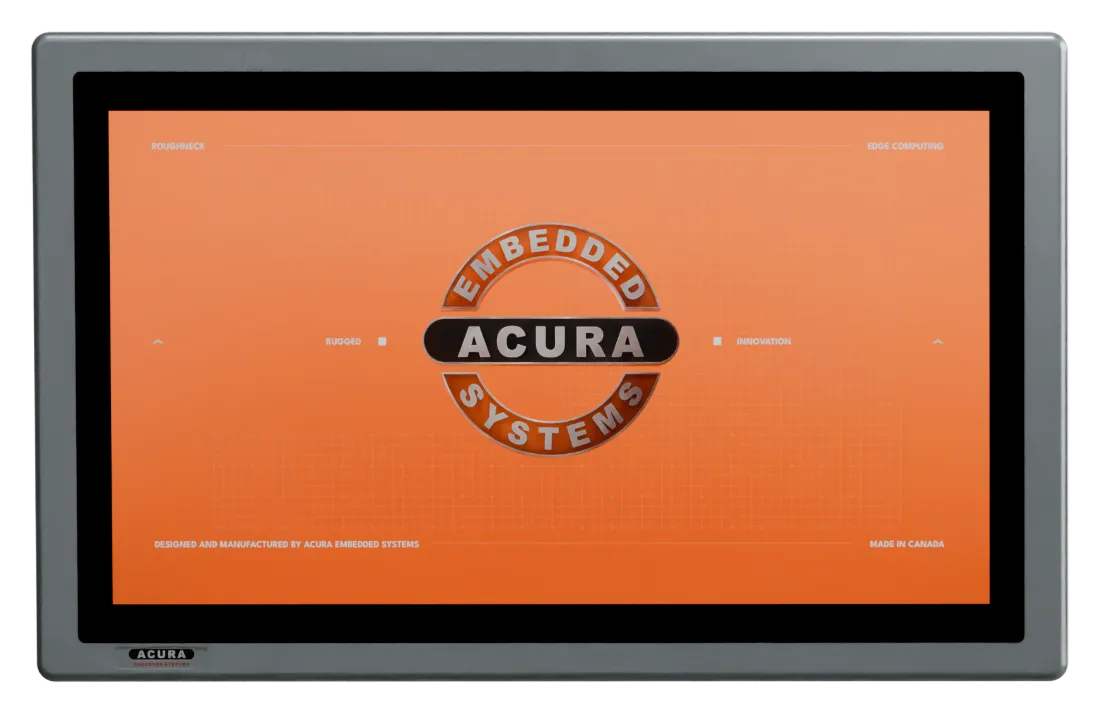

RoughNeck outdoor panel computer, front
